Advanced pH/ORP Benchtop Meter- HI6221-02

Name: Advanced pH/ORP Benchtop Meter- HI6221-02
Brand: Hanna Instruments
SKU: HI6221-02
Price: 122546.25 INR
Availability: InStock

HI6221-02

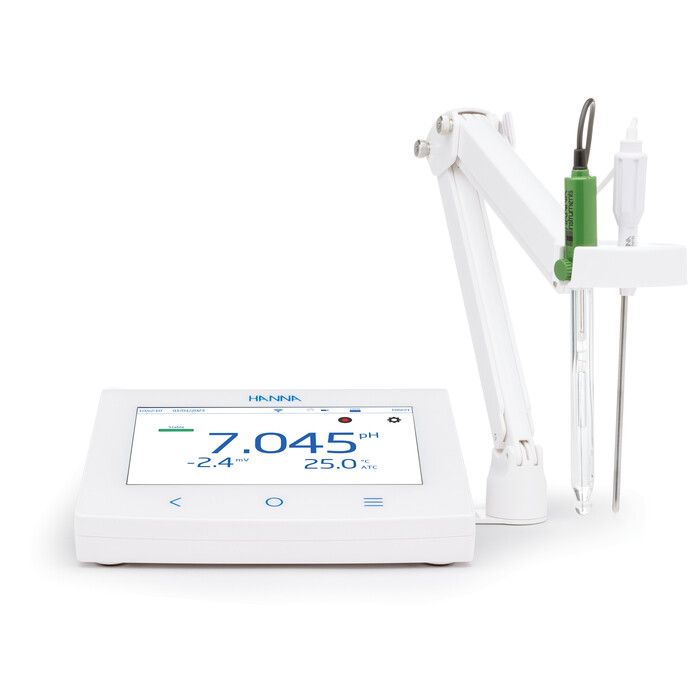

HI6221 is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated pH / ORP measurement module.

systemUI

Download Catalogue

Laboratory

Measure pH/mV (pH) or mV/Rel. mV (ORP) with Temperature

HI6221 is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated pH / ORP measurement module.

Compact and easy to operate, the benchtop meter is delivered with Hanna Instruments HI1131B double junction combination pH electrode, together with HI7662-TW temperature probe.

HI1131B is a glass body, double junction, refillable pH electrode with an indicating sensor made of High Temperature (HT) glass. The double junction reference and HT glass design allow the HI1131B to be used in a wide variety of applications including samples with metals and elevated temperatures. Probe connection to the unit is secured through a galvanically isolated BNC connection. HI7662-TW stainless steel temperature probe allows the meter to automatically temperature compensate (ATC) pH measurements.

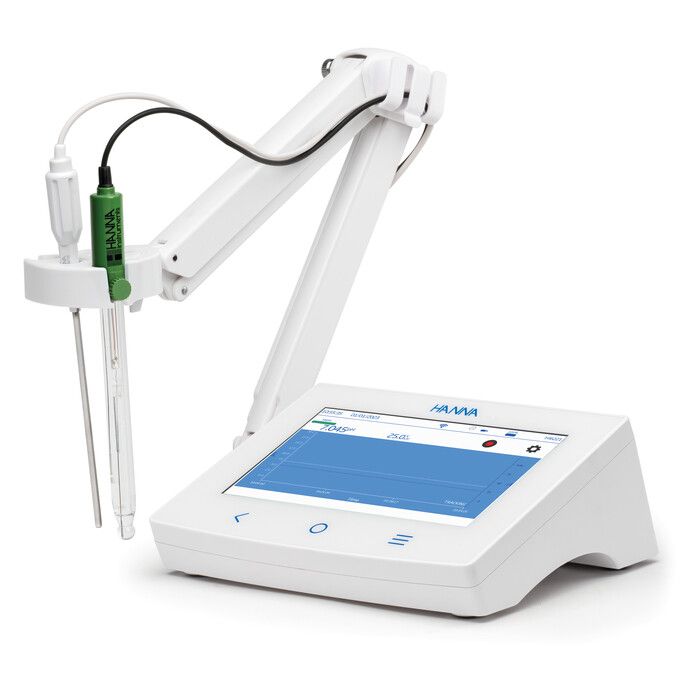

This system responds to a complex range of measurement and monitoring requirements, providing accuracy, reproducibility, and reliability. HI6221 is supplied with an electrode holder that has a flexible arm. The holder can be mounted quickly and provides secure support for electrodes while taking measurements in sample containers.

User interface

7-inch capacitive touch screen with multi-touch support
Capacitive touch back, home and system menu keys
User-friendly icons and symbols allow users to easily navigate and interpret the instrument functions.
The user can select between five different views:
- Basic measurement configuration

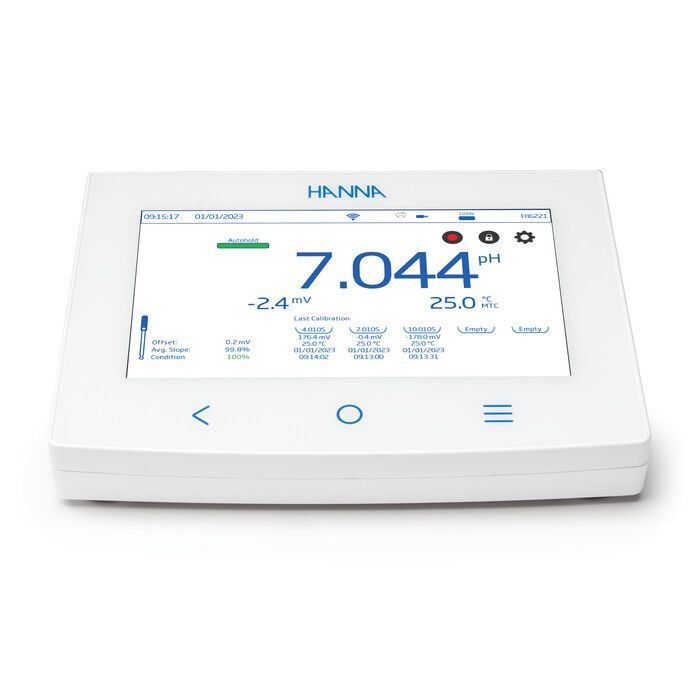

- Simple GLP with calibration information
- Full GLP with electrode status and calibration point details
- Live updated, interactive graph
- Tabulated data with date, time, and notes

Measurement

Measure pH/mV (pH) or mV/Rel.mV (ORP) with temperature
Application-specific profiles allow quick and direct measurement without the need to update the sensor and system settings
Active log during measurement o Measurement stability indicator (using the Stability Criteria setting)
Reading modes: direct and direct/autohold
Temperature compensation can be Automatic (using temperature probe) or set manually
Audible and/or alarm messages for measurements outside of predefined limits
Galvanic isolation for pH/ORP measurement

Calibration

5-point pH calibration with automatic recognition for standard buffers (Hanna and NIST buffers)
Choice of standard or custom buffers for calibration
Non-volatile memory saves data and settings

Logging

Data log collection of at least 1, 000, 000 data points (with time and date stamp)
Logging types: manual, automatic, autohold
Sample ID for manual and Autohold data

Connectivity features & services

Transfer logged data to a USB thumb drive
Log files that include measurements and calibration data (as .csv file)
FTP and email for log export via Ethernet and Wi-Fi connection
USB type A for USB stick, keyboard, and printer
USB type C for USB stick and PC connection

Help section for meter guidance

Video support presentation of main functionalities

Customize calibration options such as Last Calibration, Automatic, semi-automtic or manual calibration, First Calibration Point, daily or periodic Calibration Reminder, and buffer Groups.

Capacitive touch screen with multi-touch support

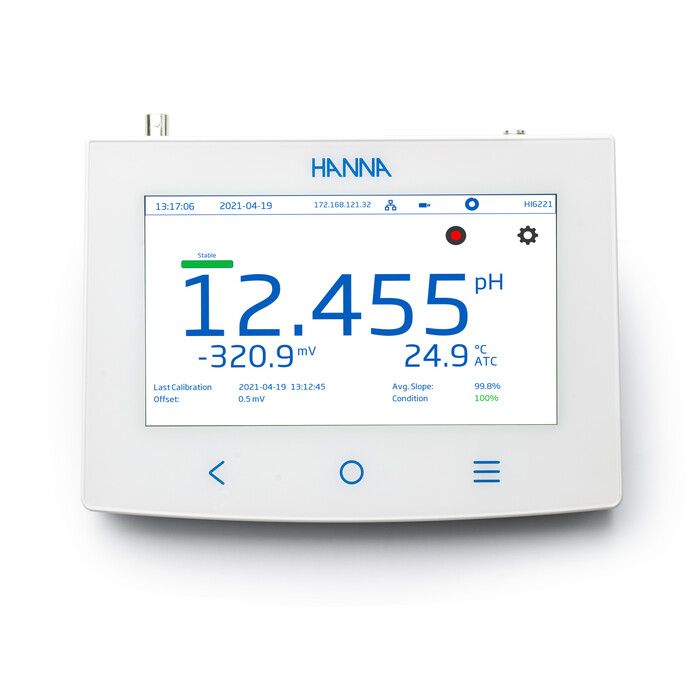

The benchtop unit has a 7-inch color display with 800 x 480p resolution. The capacitive, multi-touch screen supports video playback and data plotting.

System Menu key

This key will enter the system menu where User accounts, System Settings, and Logging can be configured. The Help menu is also accessed on the system menu screen.

Measurement setup menu

Opens sensor setup parameters.

Direct/Autohold readings

When Direct/Autohold is selected, measurement reading is held on display when measurement stability is reached. This option removes the subjective nature of stability as a measurement that has not reached equilibrium will not be used.

When not selected, sample measurements are displayed continuously.

HI6221 is supplied with:

HI1131B pH electrode; HI7662-TW temperature probe
pH calibration starter kit consisting of:
- pH 4.01 buffer solution sachet (2 pcs.)
- pH 7.01 buffer solution sachet (4 pcs.)
- pH 10.01 buffer solution sachet (2 pcs.)
HI700601 electrode cleaning solution sachet (2 pcs.)
HI7082 3.5M KCl electrolyte solution (30 mL)
HI764060 electrode holder
Capillary pipette
24 VDC power adapter
USB-C to USB-A cable
Quick reference guide with instrument quality certificate.

Specifications

SKU	HI6221-02
Name	Advanced pH/ORP Benchtop Meter- HI6221-02
pH Range	-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to
pH Range	20.000 pH
pH Resolution	0.1 pH; 0.01 pH; 0.001 pH
pH Accuracy	±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last signiﬁcant digit)
mV Range	±2000.0 mV
mV Resolution	1 mV; 0.1 mV
mV Accuracy	±0.2 mV ±1 last signiﬁcant digit
Temperature Range	-20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K
Temperature Resolution	0.1 °C / 0.1 °F / 0.1 K
Temperature Accuracy	±0.2 °C / ±0.4 °F / ±0.2 K
Relative mV oﬀset range	±2000.0 mV
pH Calibration Calibration points	Up to 5
pH Calibration Type	Automatic; Semiautomatic; Manual
pH Calibration Standard buﬀers	Hanna and NIST
pH Calibration Standard buﬀers	pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45
pH Calibration Custom buﬀers	Up to 5
pH Calibration Custom group	Up to 5
pH Calibration 1st calibration point	Oﬀset or Points (user setting)
pH Calibration Reminder	Disabled
pH Calibration Reminder	Daily: 0 m in. to 23 hours and 59 m in.
pH Calibration Reminder	Periodic: 1 m in. to 500 days, 23 hours and 59 m in.
Temperature Compensation	Automatic or Manual
Reading Modes	Direct; Direct/Autohold
Reading Stability criteria	Accurate; Medium; Fast
Reading Isopotential	7.000 or 4.010
Reading Sampling rate	1000 ms
pH Views Basic	Measurement (pH, mV, Rel.mV, Abs.mV)
pH Views Basic	Temperature, Stability status
pH Views Simple GLP	Basic view information
pH Views Simple GLP	Last calibration date, electrode oﬀset, average slope, and electrode condition
pH Views Full GLP	Simple GLP information and calibration point details
pH Views Table	Measurements updated every second are displayed in table
pH Views Graph (Plot)	pH (or mV) and temperature versus time graph can be panned or zoomed (pinch-to-zoom technology)
Logging Type	Automatic, Manual, Autohold
Logging Number of records	50 000 maximum per ﬁle / Stores at least 1 000 000 data points per user
Logging Automatic interval	1, 2, 5, 10, 30 seconds
Logging Automatic interval	1, 2, 5, 10, 15, 30, 60, 120, 150, 180 minutes
Logging Sample ID	Incremental mode
Logging Export option	.csv ﬁle format
Logging Export option	Users Up to 9 users and adm in. account (default):

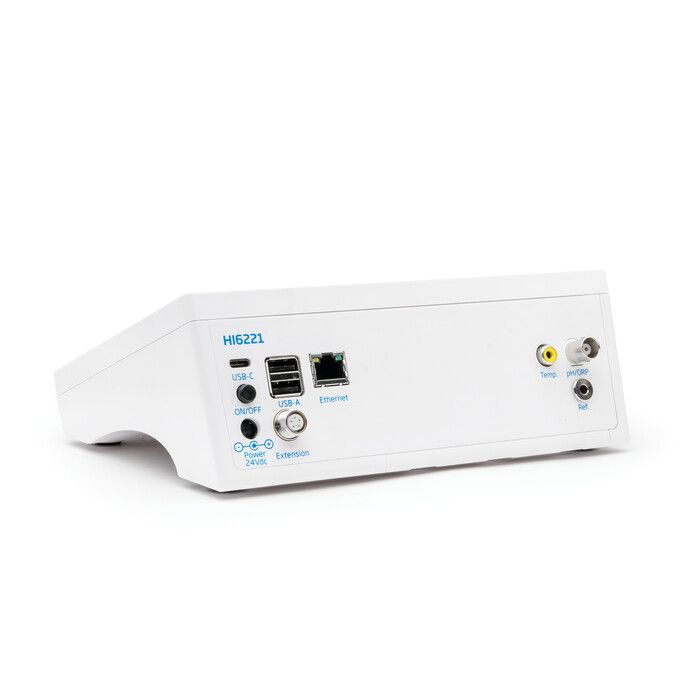

Connectivity USB-A	2 ports for keyboard input or USB thumb drive
Connectivity USB-C	1 port for PC connectivity and USB-C type thumb drive
Connectivity Wi-Fi & Ethernet	FTP / Web server Log transfer and download Email
Connectivity RS232	Connecting peripherals
Power supply	DC adapter 100-240AC to 24VDC 2.5A
Environment	0 - 50 °C / 32 - 122 °F / 273 - 323 K maximum 95% RH non-condensing
Dimensions	205 x 160 x 77 mm (8.0 x 6.2 x 3.0 “)
Weight	Approximately 1.2 kg (2.65 lbs.)
