Dual-Channel Universal Process Controller for Industrial Applications - HI520-controller with 5 relays and 4 analog outputs - HI520-0540

Name: Dual-Channel Universal Process Controller for Industrial Applications - HI520-controller with 5 relays and 4 analog outputs - HI520-0540
Brand: Hanna Instruments
SKU: HI520-0540
Price: 181797.75 INR
Availability: InStock

HI520-0540

HI520 is an advanced process controller that can be configured for applications requiring monitoring and/or control of four main water-analysis parameters: pH, ORP, Conductivity, and Dissolved Oxygen.

Waterproof IP65 (Nema 4X) enclosure
Multi-color LED status indicators & audible alarm

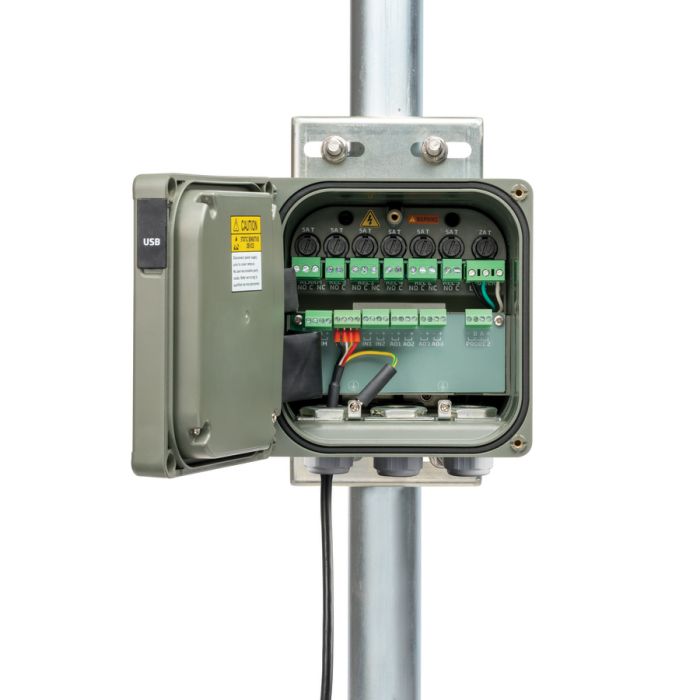

Universal mounting kits available with wall, pipe, and panel mounting options (All mounting kits must be ordered separately.)

Description:

HI520 is an advanced process controller that can be configured for applications requiring monitoring and/or control of four main water-analysis parameters: pH, ORP, Conductivity, and Dissolved Oxygen. This controller features a digital probe input(s) that automatically detects and updates the controller with the parameter that it measures.

HI520 is Hanna's first dual-input process controller that accepts virtually any combination of compatible probes. Designed to adapt to unique process control requirements, users have the option to enable or disable each channel independently.

Additionally, HI520 introduces enhanced industrial control by operating a control-loop system whereby users have the option to run channel control either independently or configure to be triggered sequentially upon reaching the other channel's set point(s) (1, 2, or both). The device operates a logical channel with built-in mathematical functions. This function is intended for when the controller works as an analyzer for monitoring high/low parameter levels between two identical inputs with identical measuring configurations.

Control Modes

Set points for control operations can be configured to be on/off, proportional, or PID types of control. The flexibility in programming allows for fine-tuning of a set point to be maintained with tight control preventing any overshoot and waste of chemicals.

Hold Function

Hold can also be triggered manually and by using and external digital input for disabling control mode when performing maintenance.

Configurable Alarm System

Configurable for set points and temperature or activated by abnormal operation, a red Alarm LED will blink and can easily be seen from a distance. All relays configured for control are inactivated until the alarm state is resolved.

Auto-cleaning cycle

The cleaning function allows the ability to program one or more wash cycles and use the relays to activate valves, pumps or compressed air based on the type of washing that is required to maintain probes for reliable results.

Relays

Available with up to five control and one alarm electromechanical relays.

Analog Outputs

Up to four galvanically isolated analog outputs for control of pumps and valves.

Digital RS485 Output

Can daisy-chain up to 32 devices to a remote monitoring system.

Digital Inputs

Two digital inputs available for modes including disabling, cleaning and placing the controller into hold status.

Large LCD

The LCD displays measurement information along with indicators of potential problems. The DIAG key then provides details of the issue.

Data-logging

Store info at selectable intervals along with relay control settings and calibrations data. Up to 100 lots, each holding 8600 records. Transfer to a flash drive as a .csv file using the USB Type-C port.

Help Button

Using the help and diagnostic button (? DIAG) will provide information related to errors or in setup mode, information about settings.

Specifications

SKU	HI520-0540
Name	Dual-Channel Universal Process Controller for Industrial Applications - HI520-controller with 5 relays and 4 analog outputs
Channels	2
Display	Graphic LCD, 128 x 64 pixel B/W with backlight
Digital Inputs	2 independent, galvanically isolated inputs (conﬁgurable for Hold & Cleaning functions)
On state	5 to 24 Vdc, low or high level active
Analog Outputs	2 or 4 independent, galvanically isolated outputs 0 – 22 mA conﬁgurable as: 0 – 20 mA;
4 – 20 mA 22 mA as alarm signal, conﬁgurable option
Digital Communication	RS485 serial port - Remote monitoring and control USB-C port - Retrieve log ﬁles and ﬁrmware upgrading
Relays	Up to 5 relays (independently conﬁgurable for process variables, Hold & Cleaning functions
Electromechanical relay SPDT and SPST contact outputs 5A – 250 Vac; 5A – 30 Vdc (resistive load)
Fuse protected	5A, 250V slow blow fuse
Alarm Relay for All Measurement Alarms	Electromechanical relay SPDT contact output 5A – 250 Vac; 5A – 30 Vdc (resistive load) Fuse protected: 5A, 250V slow blow fuse
Data Logging	Interval log, up to 100 ﬁles, maximum 8600 records on each stored ﬁle. When the maximum limit of 100 stored ﬁles is reached, the most recent ﬁle will automatically erase the oldest one.
Event log, maximum 100 records. When the maximum limit is reached, the last record overwrites the oldest one.
Power Supply	100 – 240 Vac ±10%; 50/60 Hz; 15VA; fuse protected (2A, 250V slow blow fuse)
Power Consumption	15VA
Installation Category	II
Environment	-20 to 50 ºC (-4 to 122 ºF); maximum 100% RH non-condensing
Enclosure*	Single case ½ DIN, type 4X, IP65 ingress protection
Weight	Approximately 1.6 kg (3.5 lb.)
Dimensions	Width: 144.0 mm (5.7 in.)
Height	144.0 mm (5.7 in.)
Depth	151.3 mm (6.0”)
