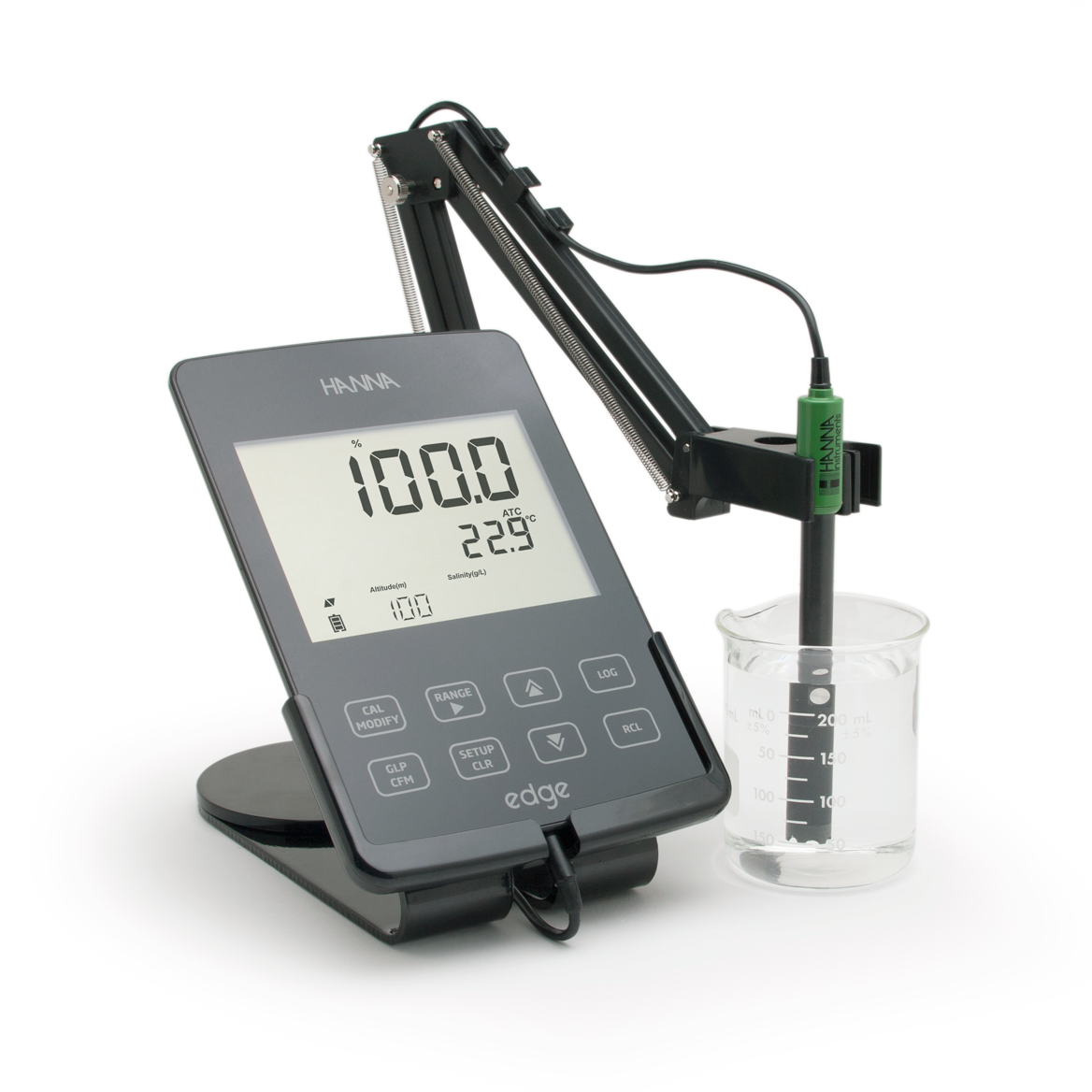

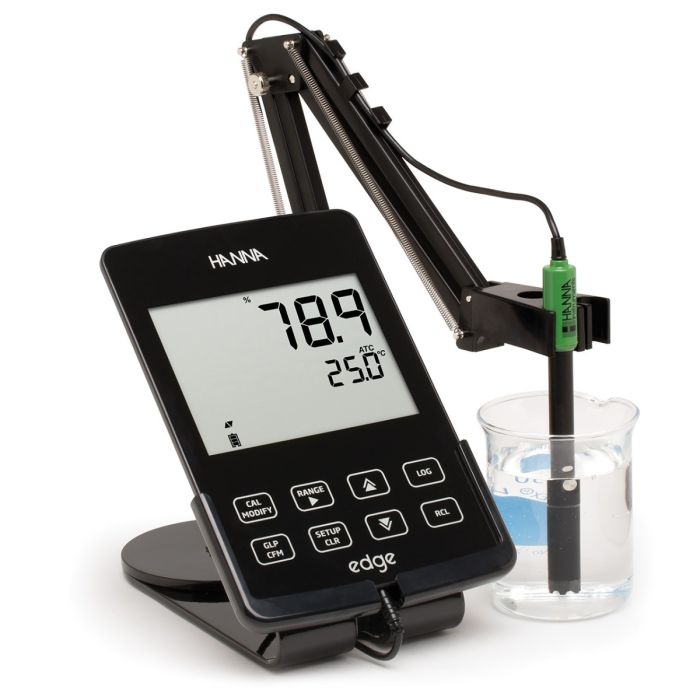

edge® DO Benchtop Meter - HI2040-02

Name: edge® DO Benchtop Meter - HI2040-02
Brand: Hanna Instruments
SKU: HI2040-02
Price: 103018.50 INR
Availability: InStock

HI2040-02

edge® tablet style meter is a groundbreaking design that is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. The smart, slim-line design means edge can be used as a hand held, wall mount or bench top meter. Combined with sophisticated technology, it delivers fast accurate results with laboratory grade precision whichever format you choose to use. Cutting-edge design, capacitive touch keypad and an intuitive user interface are just some of the attributes that make this meter stand out. DO is measured through a unique digital electrode. Connected via an easy plug-in 3.5mm connector, this smart electrode enables edge to automatically recognise and store sensor type, ID and calibration information. Programmed for basic and advanced modes, edge offers simplified screen features for routine measurements or detailed data display. It warns users if the electrode is not clean or if buffers are contaminated during calibration using the exclusive Hanna CAL Check feature

Download Catalogue

edge® is packed with many cutting-edge features to ensure accuracy and usability.

Digital Electrodes

edge® electrodes are highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by edge® once the electrode is plugged in. These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pins.View Electrodes

Clark Type Polarographic DO Probe

edge®HI764080 DO probe has an integrated temperature sensor incorporated into the thin ½” PEI body for automatic temperature compensation of dissolved oxygen measurements. The HI764080 probe uses screw on replaceable caps with a PTFE (Polytetrafluoroethylene) membrane that is easily replaced in the field as well in the lab. The supplied HI7041S is a concentrated Potassium Chloride fill solution used with the Clark-type polarographic technology. With this technology, an external voltage is applied to the platinum cathode and silver anode to establish a current that is proportional to the concentration of oxygen in a solution.

3.5 mm Probe Input

Plugging an electrode in has never been simpler; no alignments, no broken pins, just connect the 3.5 mm plug and get started.

edge® is incredibly versatile. It can be used in a variety of ways and in a variety of environments without taking up the space of a traditional benchtop meter.

Wall Mount

Using the wall mount cradle (included), edge® can be placed on a wall, leaving a zero footprint on the benchtop space. The cradle has a built-in connector to power edge® and charge its batteries. edge®'s zero footprint is designed to save you valuable benchtop space.

Cradle and Electrode Holder

edge® is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge® securely in place at the optimum viewing angle.

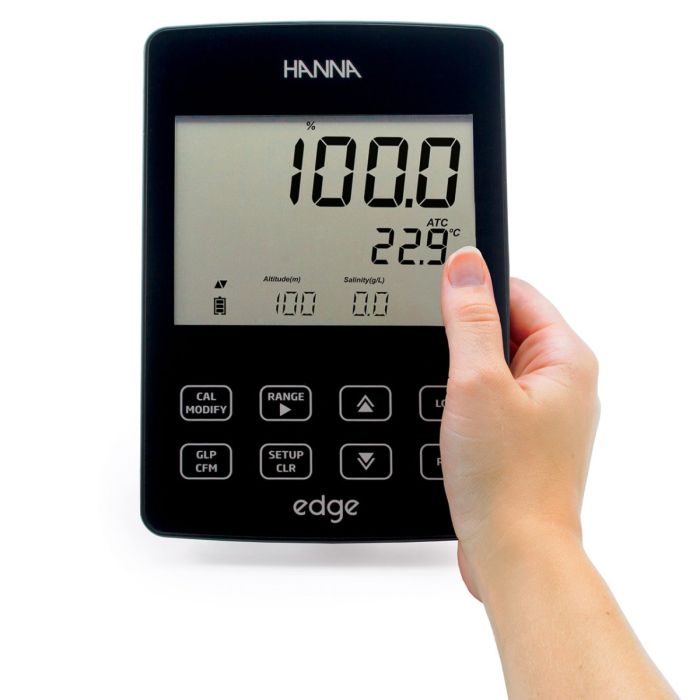

edge® is incredibly thin and weighs only 8.8 oz., has an 8-hour battery life, and dual USB inputs.

Two USB Ports

edge® includes one standard USB for exporting data with a flash drive and a second micro-USB port for you to connect to a computer for file export and for charging your edge® when the cradle is not available.

Data Logging

edge® allows you to store up to 1000 log records of data. Data sets include readings, GLP data, date and time.

Basic Mode

You can use edge® in Basic Mode, ideally for routine measurements for a simplified screen and features.

Video

Specifications

SKU	HI2040-01
Name	® Multiparameter DO Meter - HI2040
pH Range	-2.000 to 16.000 pH, -2.00 to 16.00 pH, ±1000 mV
pH Resolution	0.001 pH, 0.01 pH, 0.1 mV
pH Accuracy	±0.002 pH, ±0.01 pH, ±0.2 mV
pH Calibration	Automatic, up to 3 points (5 points) calibration, 5 standard (7 standard) buffers available (1.68, 4.01 or 3.00, 6.86, 7.01, 9.18, 10.01, 12.45) and 2 custom buffers*
pH Temperature Compensation	ATC: -5.0 to 100.0ºC; 23.0 to 212.0°F*
pH CAL Check (electrode diagnostics)	glass and reference junction diagnostics ( HI 11311 & HI 12301 only), out of calibration range , probe condition, response time
EC Range	0.00 to 29.99 µS/cm, 3.00 to 29.99 µS/cm, 30.0 to 299.9 µS/cm, 300 to 2999 µS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm, absolute conductivity ‡
EC Resolution	0.01 µS/cm, 00.1 µS/cm, 0.01 µS/cm, 0.01 mS/cm, 00.1 mS/cm
EC Accuracy	±1% of reading (±0.05 µS/cm or 1 digit, whichever is greater)
EC Calibration	1 Cell Factor calibration; 6 standards available: 84, 1413 µS/cm, 5.00, 12.88, 80.0, 111.8 mS/cm, 1 point offset: 0.00 µS/cm
TDS Range	0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150. to 1499. ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L absolute TDS ‡ (with 0.80 factor)
TDS Resolution	0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
TDS Accuracy	±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
TDS Calibration	through EC calibration
EC/TDS Temperature Compensation	Automatic -5 to 100 ºC (23 to 212 ºF); NoTC - can be selected to measure absolute conductivity
Temperature Correction Coefficient	0.00 to 6.00% / ºC (for EC and TDS only). Default value is 1.90% / ºC
EC to TDS Conversion Factor	0.40 to 0.80 (default value is 0.50)
Salinity (% NaCl) Range	0.0 to 400.0% NaCl *
Salinity (% NaCl) Resolution	0.1% NaCl
Salinity (% NaCl) Accuracy	±1% of reading (@25ºC/77ºF)
Salinity (% NaCl) Calibration	1 point with HI 7037L 100% NaCl sea water standard
Salinity (PSU) Range	2.00 to 42.00 PSU *
Salinity (PSU) Resolution	0.01 PSU
Salinity (PSU) Accuracy	±1% of reading (@25ºC/77ºF)
Salinity (PSU) Calibration	through EC calibration
Salinity Range	0.0 to 80.0 g/L *
Salinity Resolution (ppt)	0.01 g/L
Salinity Accuracy (ppt)	±1% of reading (@25ºC/77ºF)
Salinity Calibration (ppt)	through EC calibration
Dissolved Oxygen Range	0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation
Dissolved Oxygen Resolution	0.01 ppm, 0.1% saturation
Dissolved Oxygen Accuracy	±1 digit, ±1.5% of reading
Dissolved Oxygen Calibration	one or two points at 0% (HI 7040 solution) and 100% (in air)
Dissolved Oxygen Temperature Compensation	ATC: 0 to 50 ºC; 32.0 to 122.0 °F
Salinity Compensation	0 to 40 g/L (with 1 g/L resolution)
Altitude Compensation	-500 to 4000 m (with 100 m resolution)
Temperature Range	-20.0 to 120.0 ºC, -4.0 to 248.0 °F
Temperature Resolution	0.1 °C, 0.1 °F
Temperature Accuracy	±0.5 °C, ±1.0 °F
DO Probe	HI 764080 (included)
Logging Type	Manual log-on-demand (Max. 200 logs); Manual log-on-stability (Max. 200 logs); Interval logging *** (Max. 600 samples; 100 lots)
Logging Memory	up to 1000*** records
Connectivity	1 micro USB port for charging and PC connectivity, 1 USB port for storage
Battery Type/Life	Built-in rechargeable battery with up to 8 hours of continuous use
Power Supply	5 VDC adapter (included)
Environment	0 to 50°C (32 to 122°F), RH max 95% non-condensing
Dimensions	202 x 140 x 12.7mm (8” x 5.5” x 0.5”)
Weight	250 g (8.82 oz)

Ordering Info

HI2040 includes: HI764080 Dissolved Oxygen electrode, HI7041S refill electrolyte solution, (2) DO membrane caps, (2) DO membrane cap O-rings,USB cable, benchtop docking station with electrode holder, wall mount cradle, 5 VDC power adapter, instruction manual, and quality certificate.
