edge® Multiparameter pH Meter, 230V - HI2020-02

Name: edge® Multiparameter pH Meter, 230V - HI2020-02
Brand: Hanna Instruments
SKU: HI2020-02
Price: 69984.00 INR
Availability: InStock

HI2020-02

edge® tablet style meter is a groundbreaking design that is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. The edge meter is only 0.5” thick yet rich in features to accommodate the needs of a vast amount of customers. For those that prefer very simplistic operation there is a basic mode operation with a simplified menu and options. For those who require advanced features there is the full featured standard operating mode. The edge HI2020 pH kit can be upgraded at any time with additional probes to measure Conductivity or Dissolved Oxygen.

Download Catalogue

edge® is packed with many cutting edge features to ensure accuracy and usability.

Digital Electrodes

edge electrodes are highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by edge once the electrode is plugged in. These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pins.

Sensor Check

When used with Hanna’s pH electrodes equipped with a matching pin, edge constantly checks the impedance of the pH measuring electrode to notify you in real time in the event of glass breakage. During calibration, Sensor Check checks the state of the junction. The reference junction is also evaluated and reported on the display.

3.5 mm Probe Input

Plugging an electrode in has never been simpler; no alignments, no broken pins, just connect the 3.5 mm plug and get started.

edge® is incredibly versatile. It can be used in a variety of ways and in a variety of environments without taking up the space of a traditional benchtop meter.

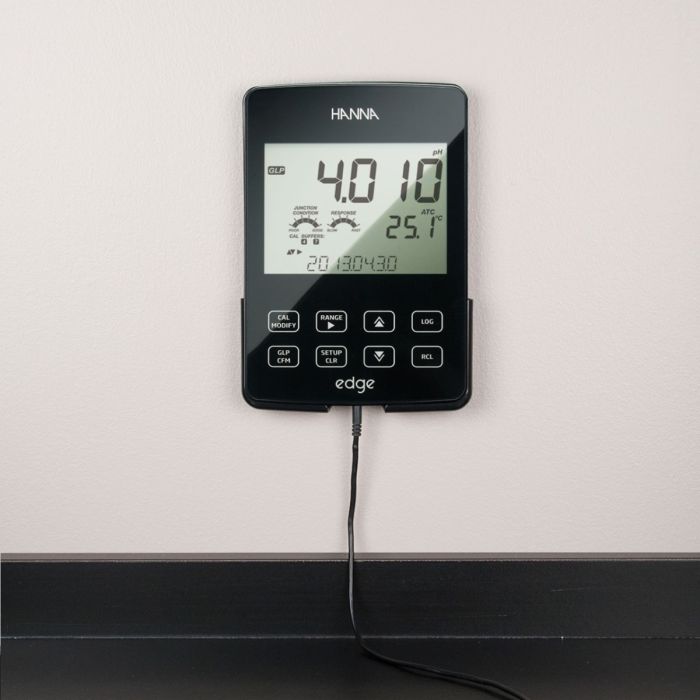

Wall Mount

Using the wall mount cradle (included), edge can be placed on a wall, leaving zero footprint on the benchtop space. The cradle has a built-in connector to power edge and charge its batteries. edge's zero footprint is designed to save you valuable benchtop space.

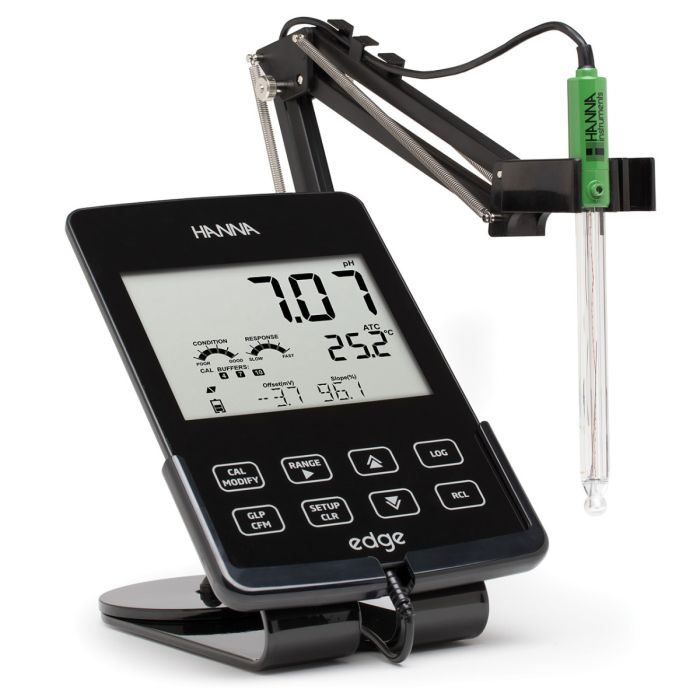

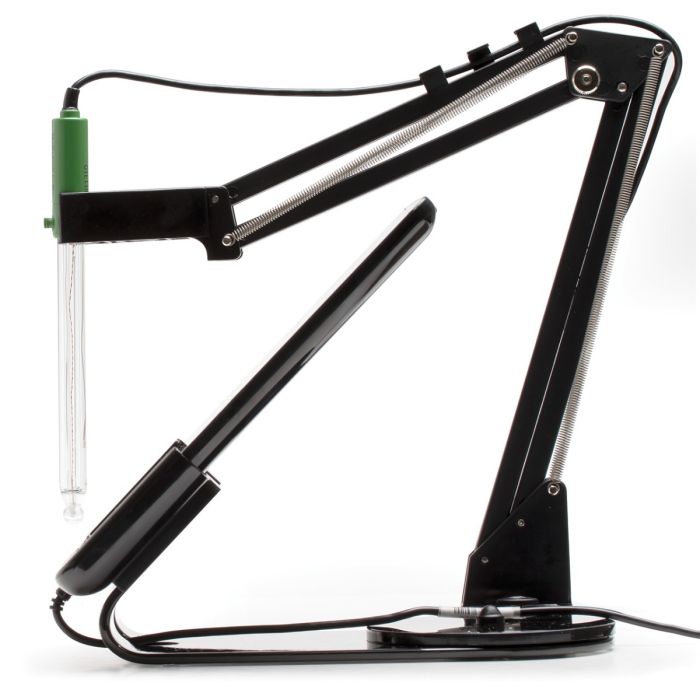

Cradle and Electrode Holder

edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimum viewing angle.

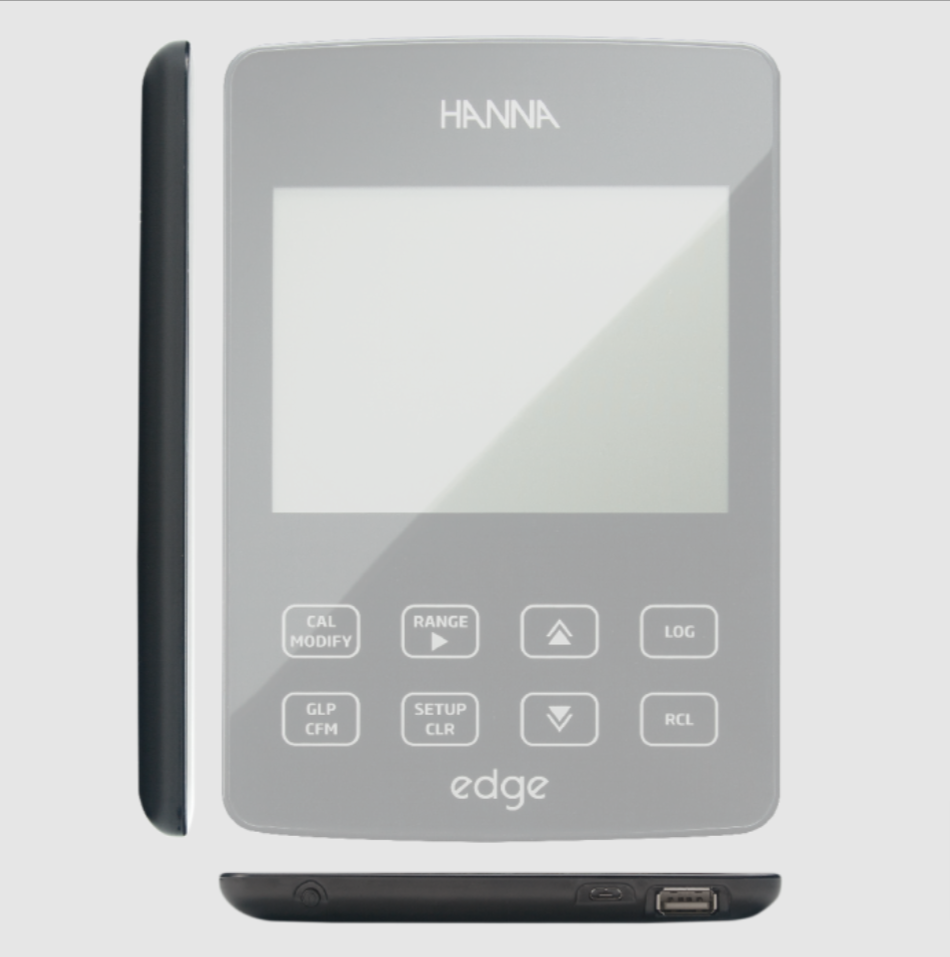

edge® is incredibly thin and weighs only 8.8 oz., has an 8 hour battery life, and dual USB inputs.

Two USB Ports

edge includes one standard USB for exporting data with a flash drive and a second micro USB port for you to connect to a computer for file export and for charging your edge when the cradle is not available.

Data Logging

edge allows you to store up to 1000 log records of data. Data sets include readings, GLP data, date and time.

Two Operating Modes

edge can be used in Extended or Basic Operating Modes. Extended Mode enables all features available while the Basic Mode reduces the amount of features to a very simple operation. For example, in extended mode edge offers 5 point calibration with 2 custom buffers while in basic mode calibration can only be performed to 3 points with 5 preprogrammed buffers.

Video

Specifications

SKU	HI2020-01
Name	® Multiparameter pH Meter - HI2020
pH Range	-2.000 to 16.000 pH, -2.00 to 16.00 pH, ±1000 mV
pH Resolution	0.001 pH, 0.01 pH, 0.1 mV
pH Accuracy	±0.002 pH, ±0.01 pH, ±0.2 mV
pH Calibration	5 points (Standard mode) 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01
pH Temperature Compensation	ATC: -5.0 to 100.0ºC; 23.0 to 212.0°F*
pH CAL Check (electrode diagnostics)	Glass and reference junction diagnostics ( HI 11311 & HI 12301 only), out of calibration range , probe condition, response time
EC Range	0.00 to 29.99 µS/cm, 30.0 to 299.9 µS/cm, 300 to 2999 µS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)**
EC Resolution	0.01 µS/cm, 0.1 µS/cm, 1 µS/cm, 0.01 mS/cm, 0.1 mS/cm
EC Accuracy	±1% of reading (±0.05 µS/cm or 1 digit, whichever is greater)
EC Calibration	1 point offset calibration (0.00 µS/cm in air), 1 point slope calibration in EC standard 84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm
TDS Range	0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**, with 0.80 conversion factor
TDS Resolution	0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L
TDS Accuracy	±1% of reading (±0.03 ppm or 1 digit, whichever is greater)
TDS Calibration	through EC calibration
EC/TDS Temperature Compensation	ATC (0.0 to 100.0ºC; 32.0 to 212.0 °F), NoTC
EC to TDS Conversion Factor	0.40 to 0.80
Salinity (% NaCl) Range	0.0 to 400.0% NaCl***
Salinity (% NaCl) Resolution	0.1% NaCl
Salinity (% NaCl) Accuracy	±1% of reading (@25ºC/77ºF)
Salinity (% NaCl) Calibration	1 point with HI 7037L 100% NaCl sea water standard
Salinity (PSU) Range	2.00 to 42.00 PSU***
Salinity (PSU) Resolution	0.01 PSU
Salinity (PSU) Accuracy	±1% of reading (@25ºC/77ºF)
Salinity (PSU) Calibration	through EC calibration
Salinity Range	0.0 to 80.0 g/L***
Salinity Resolution (ppt)	0.01 g/L
Salinity Accuracy (ppt)	±1% of reading (@25ºC/77ºF)
Salinity Calibration (ppt)	through EC calibration
Dissolved Oxygen Range	0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation
Dissolved Oxygen Resolution	0.01 ppm, 0.1% saturation
Dissolved Oxygen Accuracy	±1 digit, ±1.5% of reading
Dissolved Oxygen Calibration	one or two points at 0% (HI 7040 solution) and 100% (in air)
Dissolved Oxygen Temperature Compensation	ATC: 0 to 50 ºC; 32.0 to 122.0 °F
Salinity Compensation	0 to 40 g/L (with 1 g/L resolution)
Altitude Compensation	-500 to 4000 m (with 100 m resolution)
Temperature Range	-20.0 to 120.0 ºC, -4.0 to 248.0 °F
Temperature Resolution	0.1 °C, 0.1 °F
Temperature Accuracy	±0.5 °C, ±0.9 °F
pH Electrode	HI11310 pH electrode (included)
Logging Type	Manual log-on-demand (Max. 200 logs); Manual log-on-stability (Max. 200 logs); Interval logging *** (Max. 600 samples; 100 lots)
Logging Memory	up to 1000*** records
Connectivity	1 micro USB port for charging and PC connectivity, 1 USB port for storage
Battery Type/Life	Built-in rechargeable battery with up to 8 hours of continuous use
Power Supply	5 VDC adapter (included)
Environment	0 to 50°C (32 to 122°F), RH max 95% non-condensing
Dimensions	202 x 140 x 12.7mm (8” x 5.5” x 0.5”)
Weight	250 g (8.82 oz)

Ordering Info

HI2020 pH kit includes: HI11310 glass body, refillable pH electrode with temperature sensor, pH 4 buffer solution sachets, pH 7 buffer solution sachets, pH 10 buffer solution sachets, electrode cleaning solution sachets,USB cable, benchtop docking station with electrode holder, wall mount cradle, 5 VDC power adapter, instruction manual, and quality certificate.
