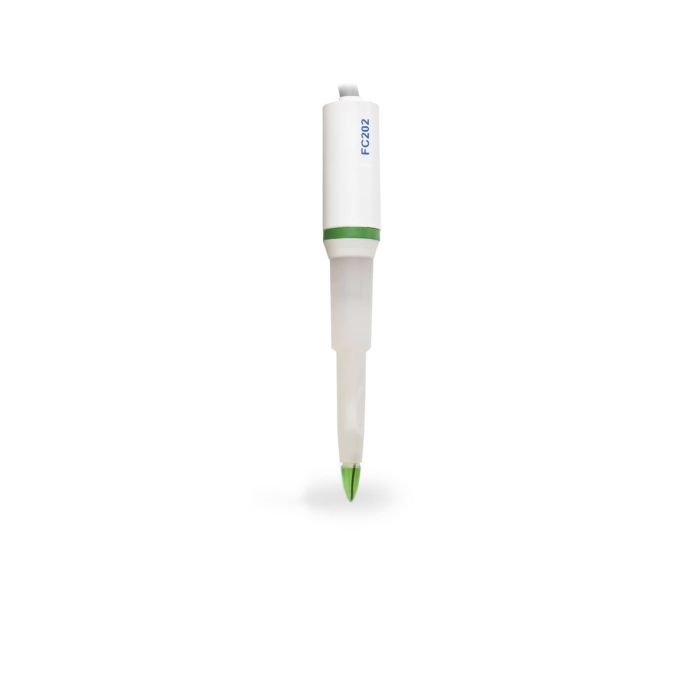

Foodcare pH Electrode for Dairy Products and Semi-Solid Foods with DIN Connector - FC202D

Name: Foodcare pH Electrode for Dairy Products and Semi-Solid Foods with DIN Connector - FC202D
Brand: Hanna Instruments
SKU: FC202D
Price: 22748.00 INR
Availability: InStock

FC202D| Ships within 24 hours (business days)

The FC202D is an amplified single junction pH electrode that has a built-in temperature sensor and connects to the meter with a DIN connector.

The FC202D electrode features a food grade plastic PVDF body, an open junction design with viscolene gel electrolyte, a sensing bulb made of low temperature glass, and a conical tip shape. This design consideration is ideal for pH measurements in dairy products, emulsions, cream, or other semi-solid samples. The recommended operating temperature range is from 0 to 50℃.

Low Temperature Glass
PVDF Body
Open Junction

Rs. 22,748.00

GST and Shipping charges are extra

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

The FC202D is an amplified pH electrode with a built-in temperature sensor. This probe is designed with low temperature (LT) glass, conical bulb, food grade PVDF body, and open junction with viscolene gel electrolyte.

Low Temperature Glass Formulation

The glass tip uses a special LT glass formulation with a lower resistance of approximately 50 megaohms compared to general purpose (GP) with a resistance of about 100 megaohms. This is beneficial since many food products are stored at low temperatures. As the temperature of the glass decreases in the sample, the resistance of the LT glass will increase approaching that of GP glass at ambient temperatures. If using GP glass, the resistance would increase above the optimum resistance for the high impedance input of a pH meter.The FC202D is suitable to use with samples that measure from 0 to 50℃.

Conical Glass Tip

The conical shaped tip design allows for penetration into solids, semi solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk.

PVDF Body

Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.

Open Junction Reference

Suspended solids and proteins found in food products will clog a conventional ceramic reference junction. This clogging will impede the measurement circuit between the indicating electrode and the internal reference resulting in slower response time, erratic readings, and frequent electrode replacement. The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable readings.

DIN Connector

The FC202D uses a DIN connector that can only be used with the HI99161 portable pH/temperature meter.

Specifications

SKU	FC202D
Name	Foodcare pH Electrode for Dairy Products and Semi-Solid Foods with DIN Connector - FC202D
Measurement Range	pH: 0 to 12
Reference Cell Type	single, Ag/AgCl
Junction Type/Flow Rate	open
Type of Electrolyte	viscolene
Body Material	PVDF
Tip / Shape	conic (6 x 10 mm)
Matching Pin	no
Max. Pressure	0.1 bar
Temperature Operating Range	0 to 50°C (32 to 122°F)
Body Length/Overall Length	75 mm / 130 mm
Temperature Sensor	yes
Outer Diameter	6 mm
Cable	7-pole; 1 m (3.3 in.)
Connector Type	DIN
Amplifier	yes
Recommended Use	dairy, milk, semi-solid foods, yogurt
