Foodcare pH Electrode for Yogurt and Creams with quick connect DIN Connector - FC2133

Name: Foodcare pH Electrode for Yogurt and Creams with quick connect DIN Connector - FC2133
Brand: Hanna Instruments
SKU: FC2133
Price: 25750.00 INR
Availability: InStock

FC2133| Ships within 24 hours (business days)

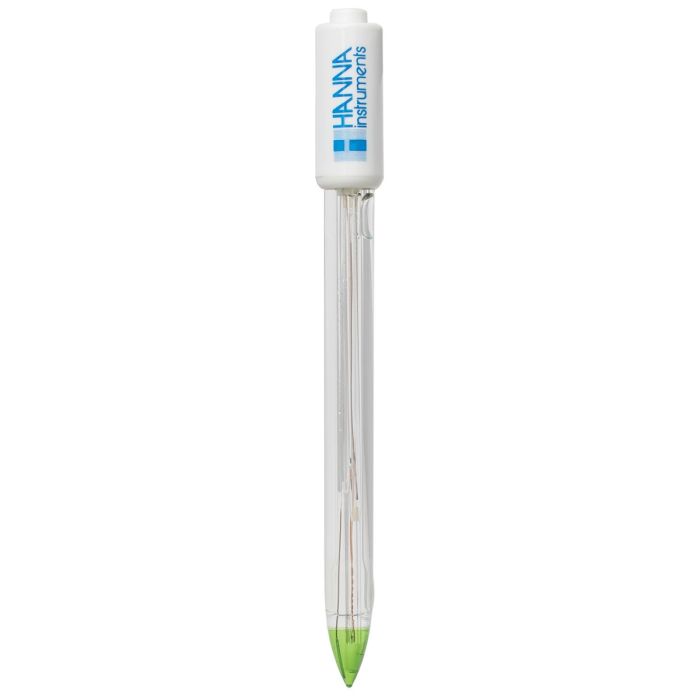

The FC2133 is a glass body, double junction pH electrode with built-in temperature sensor and a quick connect DIN connector. The FC2133 electrode features an open junction design with viscolene gel electrolyte, a sensing bulb made of low temperature glass, and a conical tip shape.

This design consideration is ideal for pH measurements in products such as cream, yogurt, or other semi-solid or emulsified samples. The recommended operating temperature range is from 0 to 50℃.

Low Temperature Glass
Conical Tip
Open Junction

Rs. 25,750.00

GST and Shipping charges are extra

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

The FC2133 is a double junction pH electrode that uses low temperature (LT) glass, conical bulb, glass body, and open junction with viscolene gel electrolyte.

Low Temperature Glass Formulation

The glass tip uses a special LT glass formulation with a lower resistance of approximately 50 megaohms compared to general purpose (GP) with a resistance of about 100 megaohms. This is beneficial since many food products are stored at low temperatures. As the temperature of the glass decreases in the sample, the resistance of the LT glass will increase approaching that of GP glass at ambient temperatures. If using GP glass, the resistance would increase above the optimum resistance for the high impedance input of a pH meter.The FC2133 is suitable to use with samples that measure from 0 to 50℃.

Conical Glass Tip

The conical shaped tip design allows for penetration into solids, semi solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk.

Glass Body

The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allow for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature dependent. The faster the equilibrium the steadier the reference potential.

Open Junction Reference

Suspended solids and proteins found in food products will clog a conventional ceramic reference junction. This clogging will impede the measurement circuit between the indicating electrode and the internal reference resulting in slower response time, erratic readings, and frequent electrode replacement. The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable readings.

Quick Connect DIN Connector

The FC2133 uses a quick connect DIN connector. This type of connector is specific for Hanna meters such as the HI98164 and HI99164. Other type of connectors include BNC, screw type, T-type, and 3.5mm to name a few.

Single Junction Versus Double Junction pH Electrodes

Conventional electrodes are normally single junction. As depicted by the figure above, these electrodes have only a single junction between the internal reference wire and the external solution. Under adverse conditions, such as high pressure, high temperature, highly acidic or alkaline solutions, the positive flow of the electrolyte through the junction is often reversed resulting in the ingress of sample solution into the reference compartment. If this is left unchecked, the reference electrode can become contaminated, leading to complete electrode failure. Another potential problem with single junction electrodes is the clogging of the junction due to silver chloride (AgCl) precipitation. Silver can be easily precipitate in samples that contain Tris buffer or heavy metals. When the electrolyte solution makes contact with the sample, some AgCl will precipitate on the external face of the junction. The result is drifty readings obtained from the sensor.

Hanna's double junction system, as the name implies, has two junctions, only one of which is in contact with the sample as shown in the figure. Under adverse conditions, the same tendency of sample ingress is evident. However, as the reference electrode system is separated physically from the intermediate electrolyte area, the contamination of the electrode is minimized. The likelihood of clogging of the junction is also reduced with a double junction electrode since the outer reference cell uses a fill solution that is "silver-free". Since there is no silver present, there is no precipitate forming to clog the junction.

Specifications

SKU	FC2133
Name	Foodcare pH Electrode for Yogurt and Creams with quick connect DIN Connector - FC2133
Temperature Probe	built-in
Reference Cell Type	double, Ag/AgCl
Junction Type/Flow Rate	open
Type of Electrolyte	viscolene
Body Material	glass
Glass Type	low temperature (LT)
Tip / Shape	conic (12 x 12 mm)
Matching Pin	no
Max. Pressure	0.1 bar
Optimum pH Range	pH: 0 to 12
Temperature Operating Range	0 to 50°C (32 to 122°F)
Body Length/Overall Length	120 mm / 160 mm
Temperature Sensor	yes
Outer Diameter	12 mm
Cable	coaxial; 1 m (3.3’)
Connector Type	quick connect DIN connector
Amplifier	yes
Recommended Use	creams, milk, yogurt
