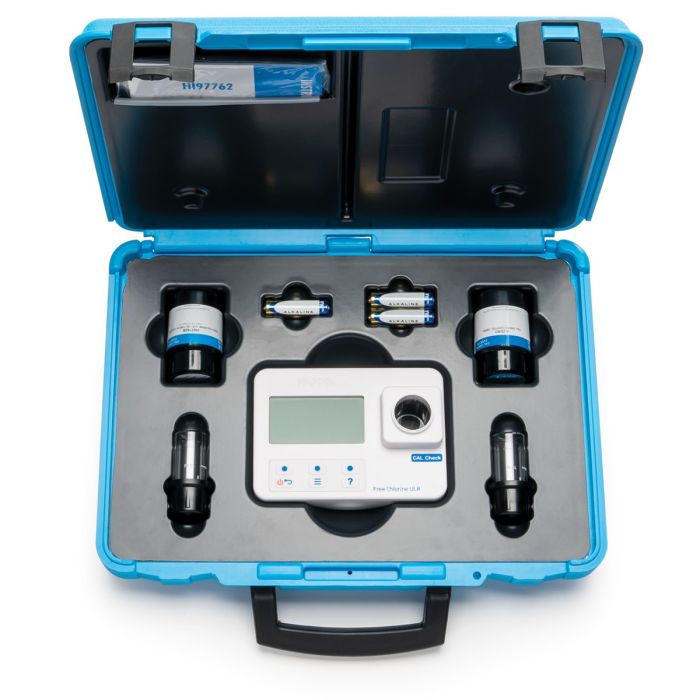

Free Chlorine Ultra Low Range Portable Photometer with CAL Check- Kit- HI97762C

Name: Free Chlorine Ultra Low Range Portable Photometer with CAL Check- Kit- HI97762C
Brand: Hanna Instruments
SKU: HI97762C
Price: 52427.00 INR
Availability: OutOfStock

HI97762C| Pre-order now – Ships in 5–6 weeks

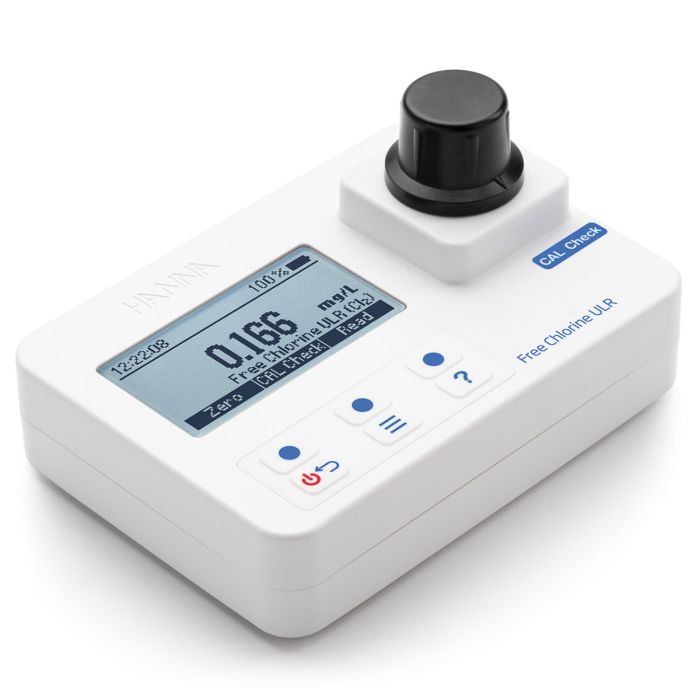

HI97762 is an advanced portable photometer for the low level measurement of free chlorine in water and has a range up to 0.500 mg/L (ppm). This meter has a superior optical system that utilizes a reference detector and narrow band interference filters for extremely fast and repeatable measurements.

No warm up time before taking a measurement
Tutorial mode for step-by-step instructions
CAL Check for performance verification and calibration

Rs. 52,427.00

GST (18%) and Shipping charges are extra

As one of the most common forms of disinfection, chlorine improves water quality by destroying disease-producing microorganisms, and by reacting with other organic and inorganic substances. There are instances when water needs to be de-chlorinated and then checked to determine if the chlorine concentration is beneath a threshold level. The HI97762 is a portable photometer designed to monitor very low levels of chlorine. The HI97762 uses an adaptation of method 4500-CL G, DPD colorimetric method from the Standard Methods for the Examination of Water and Wastewater. When the HI95762-0 DPD reagent is added to a sample containing free chlorine, the sample will turn a pink hue; the greater the concentration, the deeper the color. HI97762 measures free chlorine from 0.000 to 0.500 mg/L (ppm).

The HI97762 has an innovative optical system that offers superior performance in accuracy, repeatability, and the short amount of time it takes to perform a measurement. This compact, waterproof meter is extremely user friendly with a tutorial mode that walks the user graphically, step by step, in performing a measurement. The use of a backlit dot matrix LED allows the use of virtual keys which makes the operation of the meter very intuitive including selecting different units of measure, reviewing GLP data, recalling the last 50 measurements, and customizing the meter to user preferences.

HI97762 is completely waterproof including the cuvette holder that is designed with ridges to protect the optical path from getting scratched by the cuvette and a gasketed battery compartment that holds three common AA batteries. The compact design fits comfortable in the hand for use in the field or on a table for benchtop use. The LCD is 71 mm (2.75") by 37 mm (1.6") and is backlit for easy viewing under all conditions.

- LED that generates very little heat

- 8 nm narrowband interference filter that is accurate to ±1 nm and offers 25% increase in light efficiency.

- Reference detector that modulates the voltage to LED for consistent light output.

A concave focusing lens that reduces errors from imperfections in the cuvette

HI97762 FEATURES/BENEFITS:

Stable Light Source:

The internal reference system of the HI97762 photometer compensates for any drifts due to power fluctuations or ambient temperature changes. With a stable source of light the readings are fast and stable between your blank (zero) measurement and sample measurement..

High Efficiency Light Source:

LED light sources offer superior performance compared to tungsten lamps. LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce little heat, which could otherwise affect electronic stability.

High Quality Filters:

Improved optical filters ensure greater wavelength accuracy and allow a brighter, stronger signal to be received. The end result is higher measurement stability and less wavelength error.

Greater Light Yield:

A focusing lens collects all of the light that exits the cuvette, eliminating errors from imperfections and scratches that may be present in the glass. The use of the convex lens reduces the need for indexing cuvettes..

CAL Check Functionality:

Hanna's exclusive CAL Check feature allows for performance verification and calibration of the meter using NIST traceable standards. Our CAL Check standard vials are developed to simulate a specific absorbance value at each wavelength to verify the accuracy of subsequent readings.

Built-in Reaction Timer:

Waiting the proper reaction time is of key importance when performing colorimetric measurements. The countdown timer displays the time remaining until a measurement will be taken, ensuring consistent results between sample measurements and users.

Large Cuvette Size:

The sample cell of the HI97762 fits a round, glass cuvette with a 25 mm path length. The relatively long path length of the sample cuvette allows the light to pass through more of the sample solution, ensuring accurate measurements even in low absorbance samples.

Intuitive Dot Matrix Display:

The HI97762 is designed with a backlit, graphic LCD. With virtual keys, a battery status indicator, and error messages. Users will find the meter interface intuitive and easy to read. A dedicated help key provides information relating to the current meter operation, and can be used at any stage in the setup or measurement process to show contextual help.

Auto-off Protection:

The meter uses three common AA batteries that allow for about 800 measurements to be taken. The auto-off feature automatically shuts off the meter after 15 minutes of inactivity in order conserve battery life.
