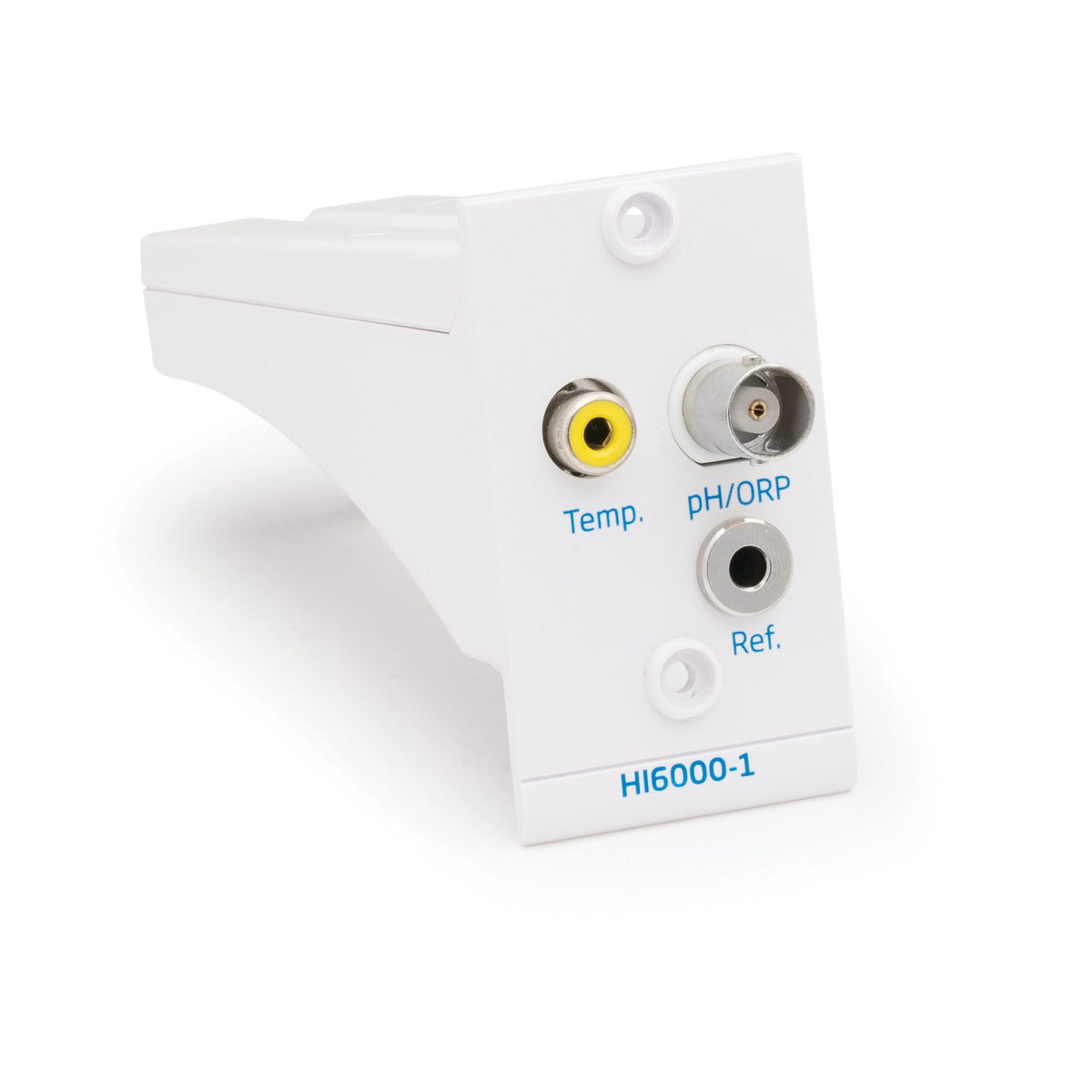

HI6000-1 pH/ORP Module designed to be used with the HI6000 Multiparameter Modular System

Name: HI6000-1 pH/ORP Module designed to be used with the HI6000 Multiparameter Modular System
Brand: Hanna Instruments
SKU: HI6000-1
Price: 22588.20 INR
Availability: InStock

HI6000-1

pH/ORP module. Recommended probes: HI1131B (pH), HI7662-TW (Temperature). Works with all Hanna pH electrodes with BNC connector.

Measurement
• Measure pH or mV with temperature (HI6000-1);
• Application-specific profiles allow quick and direct measurement without the need to
update the sensor and system settings
• Active log during measurement
• Measurement stability indicator (using the Stability Criteria setting)
• Reading modes:
• Direct and direct/autohold
• Temperature compensation can be Automatic (using temperature probe) or set manually

•Audible and/or alarm messages for measurements outside of predefined limits
•Galvanic isolation for pH/ORP measurement
Calibration
•pH calibration using
•Up to five Hanna Instruments pH buffers (pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01 and
12.45)
•Up to five custom buffers
•mV calibration using a single point to calibrate offset.
•ISE calibration using up to five nominal standard values (e.g. for ppm: 0.010, 0.100, 1.00,
10.0, 100, 1000, 10000 ppm) and/or up to five custom solutions (user supplied)

Specifications

SKU	HI6000-1
Name	HI6000-1 pH/ORP Module designed to be used with the HI6000 Multiparameter Modular System. - HI6000-1
pH Range	-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH
pH Resolution	0.1 pH; 0.01 pH; 0.001 pH
pH Accuracy	±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit)
Temperature compensation	Automatic or manual
Calibration points	up to 5
Type	Automatic; Semiautomatic; Manual
Standard buffers	Hanna and NIST pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45
Custom buffers	Up to 5
Custom group	Up to 5
1st calibration point	Offset or point (user setting)
Isopotential point	−2.000 to 20.000 pH
mV Isopotential point	−2.000 to 20.000 pH
mV Range	−2000.0 mV to 2000.0 mV
mV Resolution	1 mV; 0.1 mV
mV Accuracy	±0.2 mV ±1 last significant digit
mV Calibration	Single point offset, ±2000.0 mV
Temperature Range*	-20.0 to 120.0 °C -4.0 to 248.0 °F 253.2 to 393.2 K
Temperature Resolution	0.1 °C 0.1 °F 0.1 K
Temperature Accuracy	±0.2 °C ±0.4 °F ±0.2 K
Temperature Calibration	Single point, adjustable
Reading mode	Direct; Direct/Autohold
Reading mode Basic	Measurement data Measurement profile (if enabled) Stability status
Reading mode Simple GLP	Basic view information Last calibration date, slope, offset (pH, Rel. mV - ISE only)
Reading mode Full GLP	Simple GLP information Calibration point details (pH & ISE)
Reading mode Graph	Basic view information Measurement versus time graph
Reading mode Table	Basic view information Table with measurements updated every second

Ordering Info

HI6000-01 (US power plug) is supplied with HI764060 electrode holder; 24 VDC power adapter; USB-C to USB-A cable; quick reference guide and instrument quality certificate.
