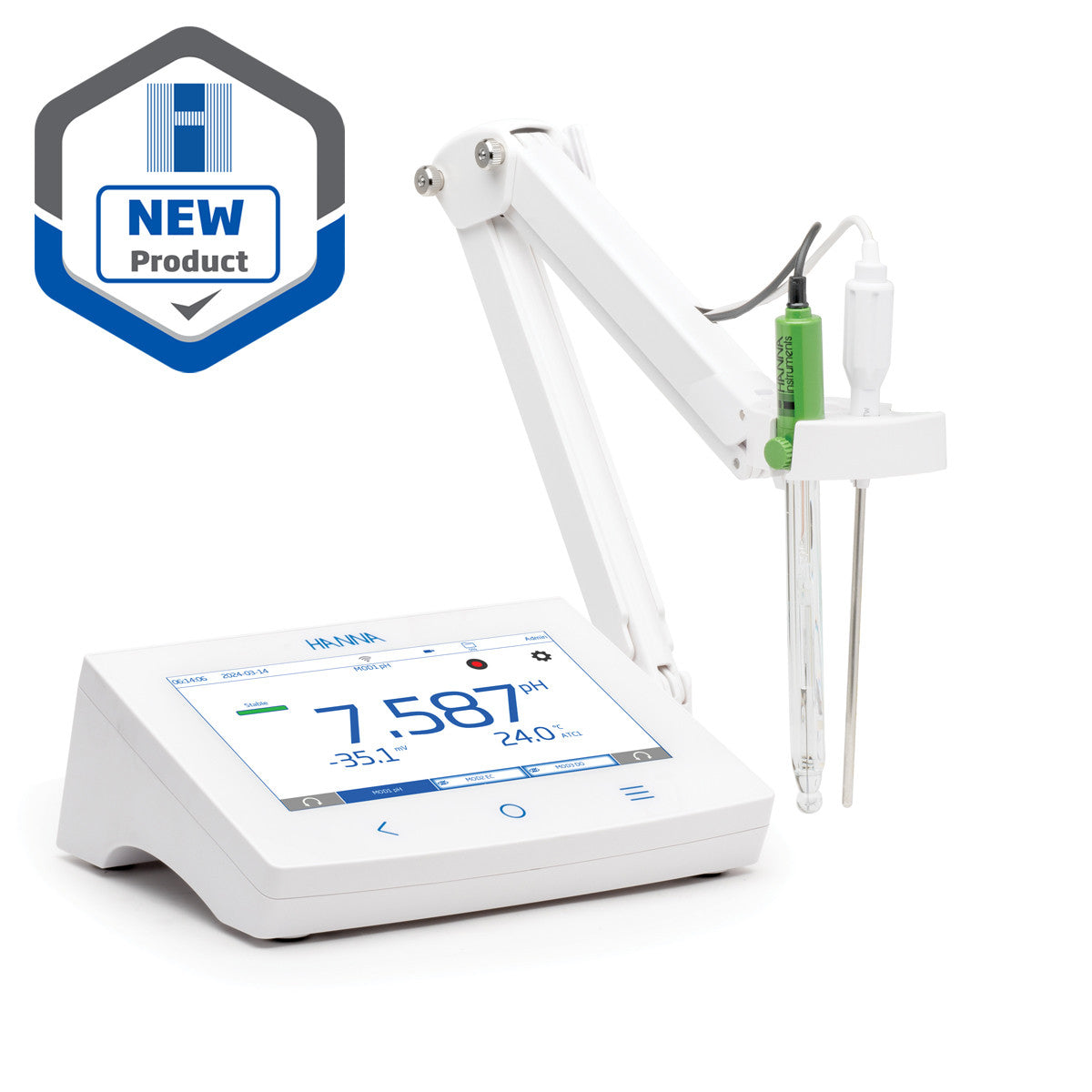

HI6222-02 pH/ORP/ISE Benchtop Meter Starter Kit

Name: HI6222-02 pH/ORP/ISE Benchtop Meter Starter Kit
Brand: Hanna Instruments
SKU: HI6222-02
Price: 168331.50 INR
Availability: InStock

HI6222-02

Set yourself up for testing success with our pH/ORP/ISE Benchtop Meter Starter Kit (HI6222). Our high-performing benchtop meter is ready-to-use straight out of the box and is fully equipped with everything you need to test. Includes necessary modules, electrodes, solutions, and more.

Precise and consistent. Achieve quick, accurate, and repeatable results
Reliable and efficient. Ensure quality and meet requirements with easy digital record keeping and increased traceability
Simple and straightforward. Intuitive navigation menus, built-in help guides, and video tutorials make testing hassle-free

Fits seamlessly into any laboratory or industry environment.

Perfect for chemists, researchers, educators, food manufacturers, beverage producers, and metal finishers to name a few.

Download Catalogue

HI6222-02 (EU power plug) is supplied with HI6000 housing unit; HI6000-2 pH/ORP/ISE hardware module ×2 (installed); HI1131B pH electrode; HI7662-TW temperature probe; pH 4.01 buffer solution, 2 sachets; pH 7.01 buffer solution, 4 sachets; pH 10.01 buffer solution, 2 sachets; electrode cleaning solution, 2 sachets; pH & ORP electrode storage solution (25 mL); 3.5M KCl electrolyte solution (30 mL); capillary pipette, 1 piece; electrode holder with base plate, screw, cable holder clip (requires mounting); 24 VDC power adapter; USB-C to USB-A cable; meter quick reference guide; hardware modules quick reference guide and quality certificates; probes and meter quality certificates.

Ordering Info

Kit supplied with two HI6000-2 pH/ISE modules; HI1131B pH electrode; HI7662-TW temperature probe; pH calibration starter kit consisting of: pH 4.01 buffer solution (2 sachets), pH 7.01 buffer solution sachet (4 sachets), pH 10.01 buffer solution sachet (2 sachets); HI700601 electrode cleaning solution sachet (2 sachets); HI70300S storage solution for pH & ORP electrodes (25 mL); HI7082 3.5M KCl electrolyte solution (30 mL); HI7631233 EC and resistivity probe; EC calibration starter kit consisting of: 1413 μS/cm standard solution (4 sachets), 12880 μS/cm standard solution (2 sachets), 5000 μS/cm standard solution (2 sachets); electrode rinse solution (2 sachets); HI764060 electrode holder with following accessories: base plate (integrated pivot pin) and screw (requires installation), cable holder clip (attached), electrode holder with adapter, attached, capillary pipette; 24 VDC power adapter; USB-C to USB-A cable; probe quality certificate; quick reference guide with instrument quality certificate. 115V

Specifications

Specification Name	Detail
Sku	HI6222-02
pH Range	−2.0 to 20.0 pH; −2.00 to 20.00 pH; −2.000 to 20.000 pH
pH Resolution	0.1 pH; 0.01 pH; 0.001 pH
pH Accuracy	±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit)
Calibration Points	Up to 5
Calibration Type	Automatic; Semiautomatic; Manual
Standard Buffers	Hanna and NIST (pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45)
Custom Buffers	Up to 5
Custom Group	Option to select from eight standard buffers and user-defined custom buffers
First Calibration Point	Offset or Point (user setting)
Isopotential Point	−2.000 to 20.000 pH
mV Range	−2000.0 to 2000.0 mV
mV Resolution	1 mV; 0.1 mV
mV Accuracy	±0.2 mV ±1 last significant digit
mV Calibration	Single point offset, ±2000.0 mV
ISE Range	1.0×10^¯5 to 300.0 ppt (g/L or mg/mL) 5.0×10^¯3 to 1.0×10⁵ ppm (mg/L or µg/mL) 1.0 to 5.0×10⁷ ppb (µg/L) 1.0×10^¯7 to 10.0 M (mol/L) 1.0×10^¯4 to 1.0×10⁴ mmol/L 1.0×10^¯6 to 60.0 %w/v 5.0×10^¯7 to 5.0×10⁷ user
ISE Resolution	1, 2, 3 significant digits
ISE Accuracy	±0.5% (monovalent ions); ±1% (divalent ions)
ISE Calibration Points	Up to 5
ISE Calibration Type	All Standards; Standard Group
ISE Standards	7 standard solutions available for each concentration unit
ISE Custom Standards	Up to 5
ISE Custom Group	Up to 5
Temperature Range	−20.0 to 120.0 °C; −4.0 to 248.0 °F; 253.2 to 393.2 K
Temperature Resolution	0.1 °C; 0.1 °F; 0.1 K
Temperature Accuracy	±0.2 °C; ±0.4 °F; ±0.2 K
Temperature Calibration	Single point, adjustable
Temperature Compensation	Automatic; Manual
Reading Mode	Direct Direct/Autohold ISE Only: Known Addition, Known Subtraction, Analyte Addition, Analyte Subtraction
Basic View	Measurement data; Measurement profile (if enabled); Stability status
Simple GLP View	Basic view information; Last calibration date, slope, offset (pH, Rel. mV - ISE only)
Full GLP View	Simple GLP information; Calibration point details (pH & ISE)
Graph View	Basic view information; Measurement versus time graph
Table View	Basic view information, Table with measurements updated every second
Reading Stability Criteria	Accurate; Medium; Fast
Reading Sampling Rate	1000 ms
Logging Type	Automatic; Manual; Autohold
Logging Number of Records	50,000 maximum per file and stores at least 1,000,000 data points per user
Logging Automatic Interval	1, 2, 5, 10, 30 seconds and 1, 2, 5, 10, 15, 30, 60, 120, 150, 180 minutes
Logging Sample ID	Incremental Mode; Manual
Logging Export Option	.CSV file format
Connectivity USB-A	2 ports keyboard and/or printer input USB Flash Drive
Connectivity USB-C	1 port PC Connectivity and USB-C Type Flash Drive
Connectivity Wi-Fi & Ethernet	FTP; Web Server (Log transfer and download); Email
Connectivity RS232	Connecting peripherals
Calibration Reminder	Daily (0 minutes to 23 hours and 59 minutes); Periodic (1 minute to 30 Days, 23 hours and 59 minutes); or Disabled
Users	Up to 9 users and the default administrator account
Power Supply	DC adapter 100-240 VAC to 24 VDC 2A
Environment	0 to 50 °C / 32 to 122 °F / 273 to 323 K maximum 95 % RH non-condensing
Dimensions	205 x 160 x 77 mm (8.0 x 6.2 x 3.0 ")
Weight	8.05 lbs
