Titrator Capabilities
Dynamic Titrant Dosing
The dynamic dosing feature allows for timely and accurate titration results by relating the titrant volume dosed to the mV response from the titration reaction. This provides for larger doses near the beginning of a titration and smaller, more precise doses near the titration endpoint.
Drift Rate Compensation
The HI903 automatically adjusts the titration calculation to account for the effects of any ambient humidity entering the titration cell. This provides a more accurate result by correcting for water not present in the actual sample.
Titration Results Averaging
Successive results from a titration method may be averaged with recording of the standard deviation.
Titrant Recordkeeping
The HI903’s titrant database can store information for up to 20 titrants. The database may be programmed to remind a user when to standardize their titrant, reducing error in analysis.
Selectable Endpoint Criteria
The HI903 employs a dual platinum pin electrode for bivoltammetric endpoint determination. Users may choose termination criteria based on mV stability times or drift rates.
Multistage Cell Preparation
A pre-titration stage eliminates residual water present in the solvent and the cell, providing a reliable baseline start to analysis. Standby mode then keeps the solvent dry between titrations and when the titrator is not in use.
Burettes & Dosing System
Precision Dosing Pump
Our unmatched 40, 000 step piston driven pump is capable of delivering as little as 0.125 µL of titrant accurately and precisely.
Chemically Resistant Tubing & Syringe
Aspiration and dispensing tubes are constructed of durable, chemically resistant PTFE and feature a light-blocking polyurethane outer sleeve to protect light sensitive reagents.
Anti-Diffusion Dispensing Tip
A specially designed glass dispensing tip delivers titrant precisely into high turbulence mixing zones, ensuring a rapid reaction. Its angular construction helps prevent titrant from diffusing into the sample solvent.
Titration & Solvent System
Efficient Sample Handling
The HI903 features a quick-remove sample port with a replaceable rubber septum allowing for fast and easy sample introduction to the titration vessel. An integrated magnetic stirrer ensures homogeneity for an accurate and speedy reaction.

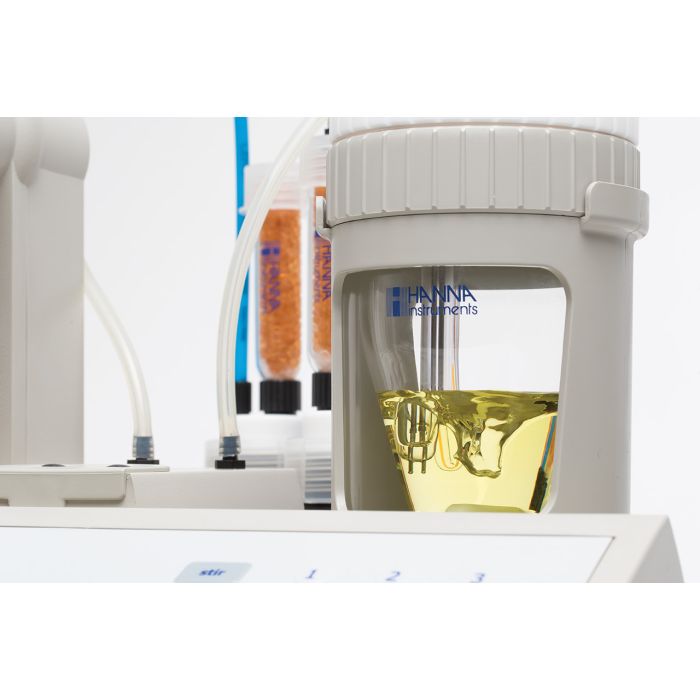

Chemically Resistant Titration Vessel
The glass and PTFE titration cell and fittings are designed to withstand the harsh solvents and reagents involved in Karl Fischer reactions.
Sealed Solvent System
The titration vessel is completely sealed to minimize exposure to ambient humidity, keep the system dry, and reduce titrant consumption while saving time between titrations. Solvent may be exchanged in a matter of seconds without opening the titration vessel.
Visually Recognizable Desiccant
A rechargeable, color-indicating, silica gel desiccant prevents the ingress of ambient humidity into the sealed system while maintaining full titrator functionality. The desiccant color change allows a user to recognize when it’s adsorption capacity has depleted and is ready for replacement or recharging.
Interface & Display
Interactive Color Display
A large, color LCD screen clearly shows the chosen titration method along with results, units, dosing size, titration volume, drift rate, and mV value.
Detailed Titration Graphs
A real-time titration curve can be displayed during each titration; this feature is useful when new methods are tested or when a procedure requires optimization.
Simple & Quick Navigation
Virtual key selections present on the display allow for simple and quick navigation between screens and menus without getting lost in a nest of information.
Data & Storage
Customizable Titration Reports
Each titration report is fully customizable so users can ensure they are storing and filing the appropriate data required for their application and procedures.
Flexible GLP Management
All necessary GLP (Good Laboratory Practice) information can be recorded with each sample including: sample identification, company and operator name, date, time, and electrode ID codes.
Effortless Data Transfer
Data can easily be transferred to a USB flash drive or PC with the Hanna HI900PC application software. The USB port allows for the transfer of titration methods, titration reports, and software upgrades via USB flash drive.
Connectivity & Functionality
Configurable Balance Interface
Sample size may be automatically entered from any laboratory analytical balance with a RS232 serial output saving time and labor.
Multiple Peripherals
Users can print reports directly from the titrator using a standard parallel printer. An external monitor and keyboard may be attached for added versatility, as well as an analytical balance for automatic sample mass entry for titrations.
Methods of Analysis
Customizable Methods
The HI903 can store up to 100 user-defined or standard titration methods. Each method may be customized and optimized for performance based on application and user requirements.
Titration Method Support
Onsite installation, training, and customization is available from one of our Applications or Service experts. Hanna offers continued support via phone or webinar for any questions you might have along the way.
Adaptable Standard Methods
Our technical experts can program and customize standard methods developed by such affiliations as ISO, ASTM, AOAC, AOCS, EPA, and more directly onto your titrator. Ask our Sales Consultants which standard methods are possible with our HI903 Karl Fischer system.
Specifications
| SKU |
HI903-01 |
| Name |
Karl Fischer Volumetric Titrator HI903 |
| Titration Principle |
Karl Fischer Volumetric |
| Titration Range |
100 ppm to 100% |
| Titration Resolution |
1 ppm to 0.0001% |
| Measurement Units |
%, ppm, mg/g, µg/g, mg, µg, mg/mL, µg/mL, mg/pc, µg/pc |
| Sample Type |
liquid or solid |
| Pre-Titration Conditioning |
automatic |
| Background Drift Correction |
automatic or user-selectable value |
| Endpoint Criteria |
fixed mV persistence, relative drift stop or absolute drift stop |
| Dosing Type |
dynamic with optional pre-dispensing rate |
| Result Statistics |
mean, standard deviation |
| Dosing Accuracy |
±0.1% of full burette volume |
| Syringe |
5 mL precision ground glass with PTFE plunger |
| Valve |
motor-driven 3-way, PTFE liquid contact material |
| Tubing |
PTFE with light block and thermal jacketing |
| Dispensing Tip |
glass, fixed position, anti-diffusing |
| Titration Vessel |
conical with operation volume between 50-150 mL |
| Solvent Handling System |
sealed system, integrated diaphragm air pump |
| Connection Type |
BNC |
| Polarization Current |
1, 2, 5, 10, 15, 20, 30 or 40 µA |
| mV Range |
2 mV to 1000 mV |
| mV Resolution |
0.1 mV |
| mV Accuracy |
±0.1% |
| Burette |
5 mL |
| Dosing Pump Resolution |
1/40000 of the burette volume (0.125 µL per dose) with 5 mL burette |
| Stirrer Type |
magnetic, optically regulated, digital stirrer |
| Stirrer Speed |
200 to 2000 rpm; resolution 100 rpm |
| Titrator Methods |
up to 100 methods (standard and user-defined) |
| Reports |
up to 100 complete titration reports and drift rate reports can be stored |
| GLP Conformity |
Good Laboratory Practice and instrument data storage and printing |
| Peripheral Devices |
connections for VGA display, PC-keyboard, parallel printer, USB device input, RS232 |
| Display |
5.7 in. (320 x 240 pixel) color LCD |
| Keypad |
polycarbonate |
| Languages |
English, Portuguese. Spanish, and French |
| Power Supply |
100-240 VAC; -01models, US plug (type A); -02models, European plug (type C) |
| Environment |
operating: 10 to 40°C (50 to 104°F), up to 95% RH
storage: -20 to 70°C (-4 to 158°F), up to 95% RH |
| Dimensions |
390 x 350 x 380 mm (15.3 x 13.8 x 14.9 in) |
| Weight |
approximately 10 kg (22 lbs) |
