Multiparameter Bluetooth® Portable pH/EC/Turbidity/OPDO® Meter - HI98594

Name: Multiparameter Bluetooth® Portable pH/EC/Turbidity/OPDO® Meter - HI98594
Brand: Hanna Instruments
SKU: HI98594
Price: 444386.25 INR
Availability: InStock

HI98594

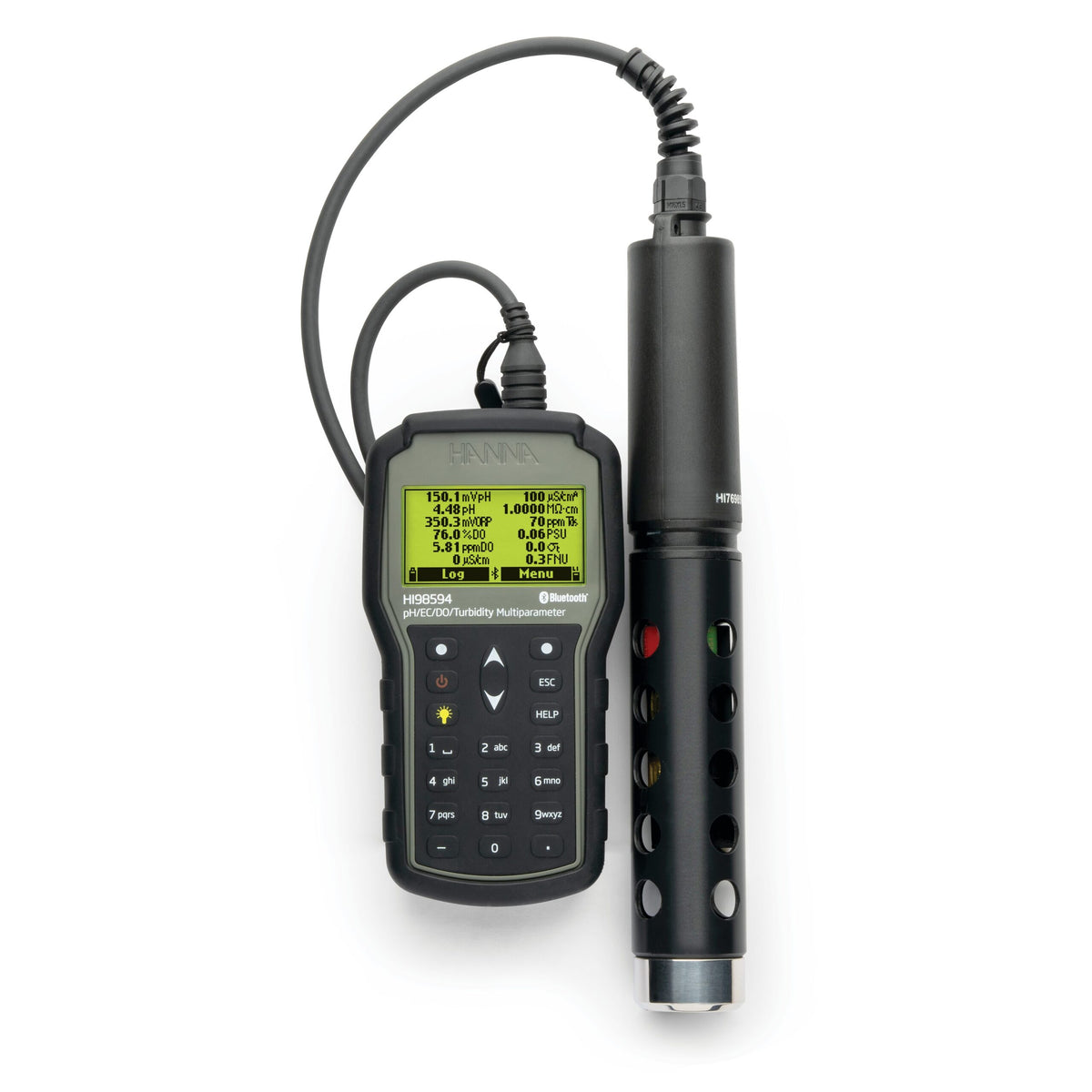

HI98594 is a portable logging multiparameter system (meter and probe) that monitors up to
14 different water quality parameters (7 measured and 7 calculated) such as pH, ORP,
turbidity, conductivity, dissolved oxygen and temperature. The HI98594 features a graphic,
backlit display that automatically sizes the digits to fit the screen with on-screen graphing
capability. Each parameter is fully configurable.
The HI98594 was designed to withstand harsh environmental conditions and is ideal for field
measurements. The meter meets IP67 standard (30 minute immersion at a depth of 1 m) and
the multi-sensor probe is totally sealed against water and dust, and meets IP68 standard
(continuous immersion in water). The meter incorporates a dual charging system, utilizing a
rechargeable Li battery and backup alkaline batteries to extend field use.
The meter can log data that can be easily downloaded as a CSV file or graph using Bluetooth®
wireless technology to Hanna Lab on iOS and Android devices or to a PC using a USB type A to
C cable.
• Rugged, water-resistant meter and waterproof probe
• Monitors up to 14 different water quality parameters
• Instantaneous conductivity and turbidity measurements
• Field-replaceable sensors with auto recognition (including optical DO technology)
• Built-in barometer for percent saturation and DO measurement compensation
• Dual battery system for extended field use
• Good Laboratory Practice feature, the last 5 calibrations are automatically stored
• Graphical display of logged data on backlit LCD screen
• Log-on-demand and automatic logging on meter for all parameters
• Download log files
• To Hanna Lab using Bluetooth wireless technology
• To a type-C, USB flash drive
• USB-C interface for PC communication
• Remote firmware update
• Protective rubber boot included

Download Catalogue

Features

Measurements
HI98594 can display from 1 to 14 parameters on the high contrast backlit LCD. The pH, EC and
DO measurements are automatically compensated for temperature variations. Dissolved
oxygen concentration measurements are automatically compensated for barometric pressure
and salinity.
Data Logging
HI98594 can be used to log one data point or continuously log at selected time intervals. All
logs have the option to store data into a named lot and the ability to add remarks. Both help to
provide for meaningful data including notes on local environmental conditions.
Dual Power Source
The meter operates on a built-in lithium-ion battery. When the rechargeable battery is low
the meter will automatically switch to the 1.5 AA alkaline batteries.
Quick-Calibration
Quick Calibration provides a speedy, single point calibration for pH, conductivity, and dissolved
oxygen. Standard calibration options are available including pH up to three points,
conductivity at one point, turbidity with 3 provided standards and dissolved oxygen up to two
points.
GLP Data
Calibration information is captured along with time and date stamp. Information includes
calibration values along with other values that have an impact on the measurement. GLP data
is stored with logged data.
Bluetooth® 5.0 Connectivity and Hanna Lab App Compatibility
HI98594 offers the ability to connect wirelessly to a smart device running the Hanna Lap App.
Using the app, log lots can be e-mailed or downloaded for review.
Share
Logs can be shared as a .CSV or PDF.
GLP
Comprehensive GLP data can be reviewed for all parameters when the logged data is
downloaded to a smart device.
Unit Selection
When reviewing data on a smart device there is an option to select the measurement units to
be displayed independently of the meter settings.
Data Graphing
For trend analysis the Hanna Lab App offers the option to graph logged data.
Multi-function Sensor
Pre-installed Sensors
The HI7698594 is supplied with pre-installed pH/ORP, EC/Turbidity and optical DO sensors
Quick sensor replacement
Sensor replacement is quick and easy with field replaceable, screw type connectors and are
color coded for easy identification. These meters automatically recognize sensors.
Optical Dissolved Oxygen Smart Caps
The optical dissolved oxygen sensor uses a smart cap that has an RFID tag that stores
calibration coefficients unique to each cap. The RFID keeps track of the age of the cap and
alerts the user when it should be replaced.

Specifications

SKU	HI98594
Name	Multiparameter Bluetooth® Portable pH/EC/Turbidity/OPDO® Meter - HI98594
pH / mV Range	0.00 to 14.00 pH* / ±600.0 mV
pH / mV Resolution	0.01 pH / 0.1 mV
pH / mV Accuracy	±0.02 pH / ±1.2 mV
pH / mV Calibration	•One point using HI9828-20 Quick calibration solution •Up to three points using pH 4.01, pH 6.86, pH 7.01, pH 9.18, pH 10.01 standard buffers and one custom buffer
ORP Range	±2000.0 mV
ORP Resolution	0.1 mV
ORP Accuracy	±1.0 mV
ORP Calibration	Automatic at one custom point (relative mV)
Dissolved Oxygen Range	0.0 to 500.0 % saturation 0.00 to 50.00 ppm (mg/L)
Dissolved Oxygen Resolution	0.1 % saturation 0.01 ppm (mg/L)
Dissolved Oxygen Accuracy	•±1.5 % of reading from 0.0 to 200.0 % saturation •±5 % of reading from 200.0 to 500.0 % saturation •±1.5 % of reading from 0.00 to 20.00 mg/L •±5 % of reading from 20.00 to 50.00 mg/L
DO calibration	•One point, quick calibration in water-saturated air •One or two points, at 100 % and 0 % •One point, using a custom solution (% saturation or mg/L )
Pressure compensation	Automatic 450 to 850 mmHg
EC Range	0 to 200 mS/cm 0 to 400 mS/cm (absolute)
EC Resolution	•Manual 1 μS/cm 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm •Automatic 1 μS/cm from 0 to 9999 μS/cm 0.01 mS/cm from 10.00 to 99.99 mS/cm 0.1 mS/cm from 100.0 to 400.0 mS/cm •Automatic (mS/cm) 0.001 mS/cm from 0.000 to 9.999 mS/cm 0.01 mS/cm from 10.00 to 99.99 mS/cm 0.1 mS/cm from 100.0 to 400.0 mS/cm
EC Accuracy	±1 % of reading or ±1 μS/cm, whichever is greater
EC Calibration	•One point using HI9828-20 Quick calibration solution •One point using 84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm standard solutions or custom point
Resistivity Range	0 to 999999 Ω·cm 0 to 1000.0 kΩ·cm 0 to 1.0000 MΩ·cm
Resistivity Resolution	1 Ω·cm 0.1 kΩ·cm 0.0001 MΩ·cm
Resistivity Calibration	Based on conductivity calibration
TDS Range*	0 to 400000 ppm (mg/L) (the maximum value depends on the TDS factor)
TDS Resolution	•Manual 1 ppm (mg/L) 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L) •Automatic 1 ppm (mg/L) from 0 to 9999 ppm (mg/L) 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L) 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L) •Automatic: ppt (g/L) 0.001 ppt (g/L) from 0.000 to 9.999 ppt (g/L) 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L) 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L)
TDS Accuracy	±1 % of reading or ±1 ppm (mg/L), whichever is greater
TDS Calilbration	Based on conductivity or salinity calibration
Salinity Range	0.00 to 70.00 PSU
Salinity Resolution	0.01 PSU
Salinity Accuracy	±2% of reading or ±0.01 PSU, whichever is greater
Salinity Calibration	One point, using a custom solution
Seawater Sigma Range	0.0 to 50.0 σt , σ₀, σ₁₅
Seawater Sigma Resolution	0.1 σt , σ₀, σ₁₅
Seawater Sigma Accuracy	±1.0 σt, σ₀, σ₁₅
Seawater Sigma Calibration	Based on conductivity or salinity calibration
Turbidity Range	0.0 to 99.9 FNU 100 to 1000 FNU
Turbidity Resolution	0.1 FNU from 0.0 to 99.9 FNU 1 FNU from 100 to 1000 FNU
Turbidity Accuracy	±0.3 FNU or ±2 % of reading, whichever is greater
Turbidity Calibration/td>	Automatic Up to three points using 0 FNU, 20 FNU, 200 FNU, and a custom
Atmospheric pressure Range	450.0 to 850.0 mmHg 17.72 to 33.46 inHg 600.0 to 1133.2 mbar
Atmospheric pressure Resolution	0.1 mmHg 0.01 inHg 0.1 mbar
Atmospheric pressure Accuracy	±3.0 mmHg within ±15 °C from calibration temperature
Atmospheric pressure Calibration	Automatic at one custom point
Temperature Range	−5.00 to 50.00 °C 23.00 to 122.00 °F 268.15 to 323.15 K
Temperature Resolution	0.01 °C 0.01 °F 0.01 K
Temperature Accuracy	±0.15 °C ±0.27 °F ±0.15 K
Temperature Calibration	Automatic at one custom point
Additional specifications - Temperature compensation	Automatic
Additional specifications - Logging memory	•Interval logging 50000 records •Log-on-demand (all parameters) 20000 records
Additional specifications - Logging interval	1 second to 3 hours
Additional specifications - USB-C (Host) functions	Mass-storage host
Additional specifications - USB-C (Device) functions	Mass-storage device
Additional specifications - Protection rating	IP67
Additional specifications - Environment	0 to 50 °C (32 to 122 °F); RH 100 %
Additional specifications - Battery type	4 x 1.5 V AA alkaline batteries 1 x internal, Li-ion rechargeable battery
Additional specifications - Battery life	≈ 126 hours 90 hours using alkaline AA batteries 36 hours using Li-ion battery**
Additional specifications - Dimensions	185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Additional specifications - Weight	435 g (13.3 oz)

Ordering Info

All HI98594 models are supplied with:
HI7698594 Multisensor probe
HI7698296 Protective probe shield
HI76984942 Probe maintenance kit
HI7698194-1 pH / ORP sensor
HI7698594-4 EC / Turbidity sensor
HI7698594-5 Optical DO sensor
HI764113-1 DO Smart Cap with o-ring

HI7698293 Long calibration beaker
HI9828-25 Quick calibration standard solution (500 mL)
HI7040 Zero oxygen solution set (120 mL)
HI9829-16 0 FNU calibration solution (230 mL)
HI9829-17 20 FNU calibration solution (230 mL)
HI9829-18 200 FNU calibration solution (230 mL)
HI710034 Protective rubber boot
HI920016 USB cable
1.5V AA alkaline batteries (4 pieces)
Quality certificates (instrument, probe, DO Smart Cap)
Quick reference guide

HI98594 is supplied with multisensor probe with 4m (13.1’) cable
