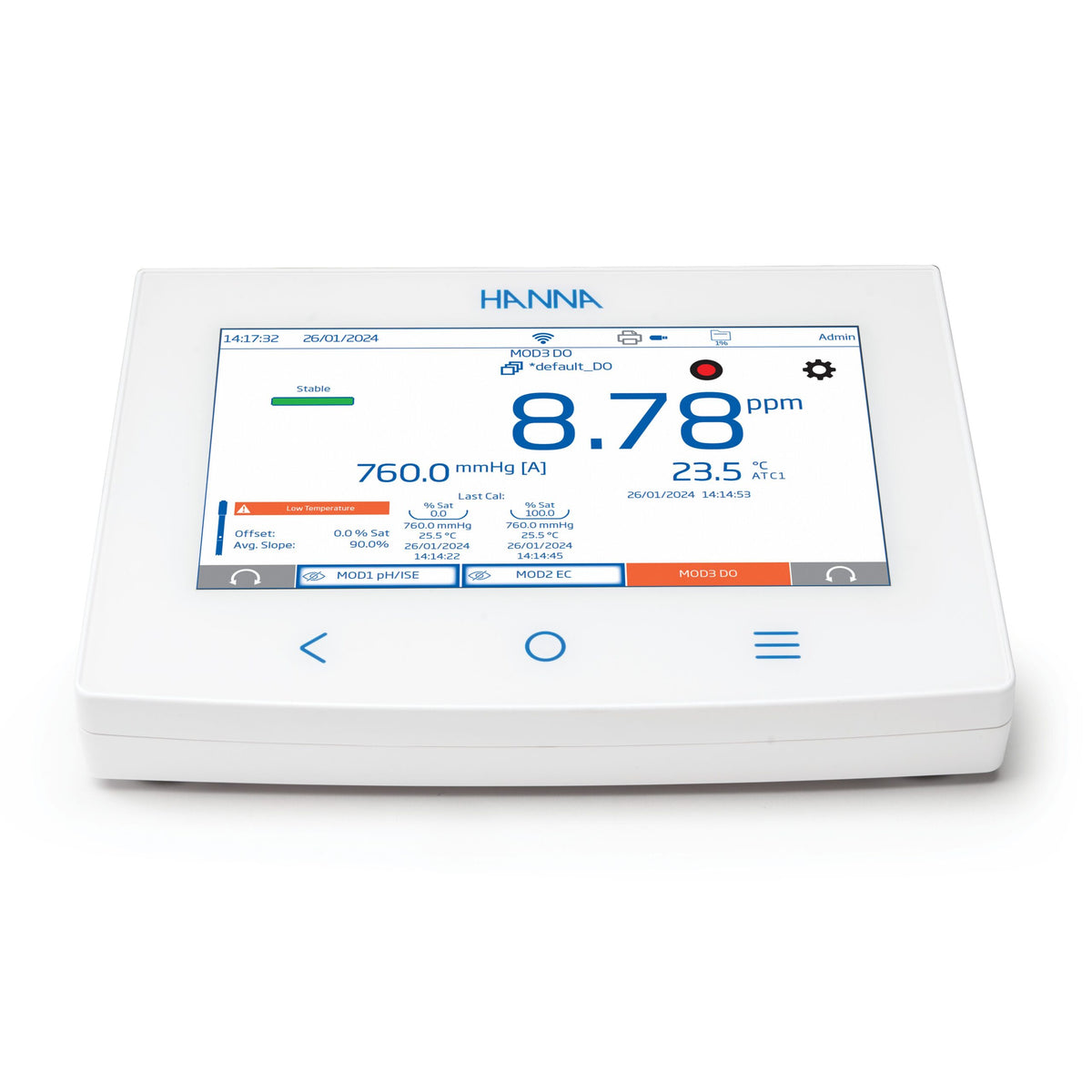

Multiparameter Modular System - pH/ORP, pH/ORP/ISE, EC and DO - HI6000

The HI6000 multiparameter modular system is a totally flexible benchtop meter platform that
is customizable to a user’s laboratory measurement and application needs.
Hanna offers four different measurement modules for pH/ORP, pH/ORP/ISE, DO, and EC.
Together with appropriate sensors, the meter provides quick and reliable measurement
displayed on the large, 7-inch capacitive touch display. The display supports multi-touch,
video playback and data plotting.
The meter is supplied with an electrode holder that has a flexible arm. The holder can be
mounted quickly and provides secure support for electrodes while taking measurements in
sample containers.
Measure
• HI6000-1 module choice of measurement unit:
• pH - pH, mV
• ORP* - mV, Rel.mV
• HI6000-2 module choice of measurement unit:
• pH - pH, mV
• ORP* - mV, Rel.mV
• ISE - ppt, ppm, ppb, g/L, mg/L, μg/L, mg/mL, μg/mL, M, mol/L, mmol/L, %w/v, user
defined
• HI6000-3 module choice of measurement unit:
• Conductivity – μS/cm or mS/cm,
• Resistivity – Ω•cm, kΩ•cm, MΩ•cm,
• TDS – ppm, ppt,
• Salinity – ppt, PSU, %,

• HI6000-4 module choice of measurement unit:
• DO – % Sat, mg/L, ppm
• BOD - ppm, mg/L,
• OUR - ppm, mg/L
• SOUR - ppm, mg/L
• Pressure - mmHg, mbar, kPa, inHg, psi, atm
• Application-specific profiles allow quick and direct measurement without the need to
update the sensor and system settings
• Method-specific application reports can be generated
• Measurement stability indicator (using the Stability Criteria setting)
• Temperature compensation can be Automatic (using integrated temperature sensor) or set
manually
• Audible and / or alarm messages for measurements outside predefined limits
• Non-volatile memory for data storage and settings
