Pool Line ORP Controller and Dosing Pump - BL101

Name: Pool Line ORP Controller and Dosing Pump - BL101
Brand: Hanna Instruments
SKU: BL101
Price: 40702.50 INR
Availability: InStock

BL101

Engineered to be an inexpensive solution for homeowner and maintenance companies to maintain the ideal ORP at all times of a swimming pool or hot tub. The BL101 Pool Line ORP Controller and Dosing Pump is a complete solution with both a process controller and a chemical dosing pump. Simply insert the probe and injection valve in-line with the re-circulation pump and supply the oxidizer (i.e. chlorine) to be dosed.

All in one solution for maintaining the proper ORP value
Industrial process probe with 1/2" NPT threads for insertion into re-circulation line
Input for level controller or flow switch

BL101 ORP Controller and Dosing Pump is a system engineered for maintaining the ORP of swimming pools, hot tubs, and spas. Typically liquid chlorine is used as a disinfectant to keep the water safe from harmful bacteria. Chlorine, as an oxidizer, will increase the oxidation- reduction potential (ORP) of water when it is added to it. When the ORP value is greater than 650mV then bacteria that are present will be killed within seconds. The BL101 was developed to be an inexpensive solution for the consumer to maintain the ideal ORP value at all times. Simply insert the probe and injection valve in-line with the re-circulation pump and provide the chemical to be dosed.

Multi-color LCD

The BL101 features a multi-colored LCD that provides for a quick way to see the status of the pool controller. If in control mode and operating as intended the display will be green. If control is not enabled then the display will be yellow while in an alarm state the display flashes red.

Intuitive LCD

Both ORP (mV) and temperature are displayed with status icons that show when the pump is dosing and the control mode status.

Programmable Alarm System

Hanna controllers allow users to enable or disable the low and high level alarms for ORP. When an alarm is activated, all dosing will stop. For added safety, the alarm system also offers overdosing protection in that if the set point value is not corrected within a programmed time interval then the meter will go into alarm status.

On-Screen Features

Adjustable Flow Rate

The flow rate from the dosing pumps is adjustable from 0.5 to 3.5L/h. Larger bodies of water require more chemical to be dosed than smaller ones in per unit of time. The adjustable flow rate, like the proportional band, allows for better control in maintaining a desired set point .

Automatic Proportional Pump Control

The peristaltic dosing pump can be controlled by simple on/off or more advanced proportional control which helps prevents overshooting of the set point. When using proportional control the flow rate that is programmed, will be impacted by the proportional band used. The closer the reading is to the set point the longer it takes for the peristaltic pump to complete one revolution. If the reading is outside the proportional band then the amount of time it takes to complete one revolution is based on the flow rate programmed.

Oxidation Chemical Tank Level/Flow Switch Input

The BL101 allows for a connection to an optional level controller or flow switch. This input can be used to disable the dosing pump when there is no chemical left in the reservoir tank or there is no flow due to the pump being turned off.

Built-in Dosing Pump

Peristaltic Dosing Pump

The BL101 features a peristaltic dosing pump that is superior to diaphragm versions due to the ability to self-prime when there is no liquid in the uptake line. The loss of prime can be problematic with a diaphragm pump due to the gassing of chlorine.

Brushless Motor

The brushless motor does not have any gears or brushes that can wear out. A brushless design provides for a long life and little maintenance. The compact stepper motor allows for very precision control over the dosing of the chemical.

Long-life Persitaltic Tubing

The industrial grade peristaltic tubing is chemical resistant and provides for a relatively long-life. As tubing stretches over time it can be easily replaced. No special tools required.

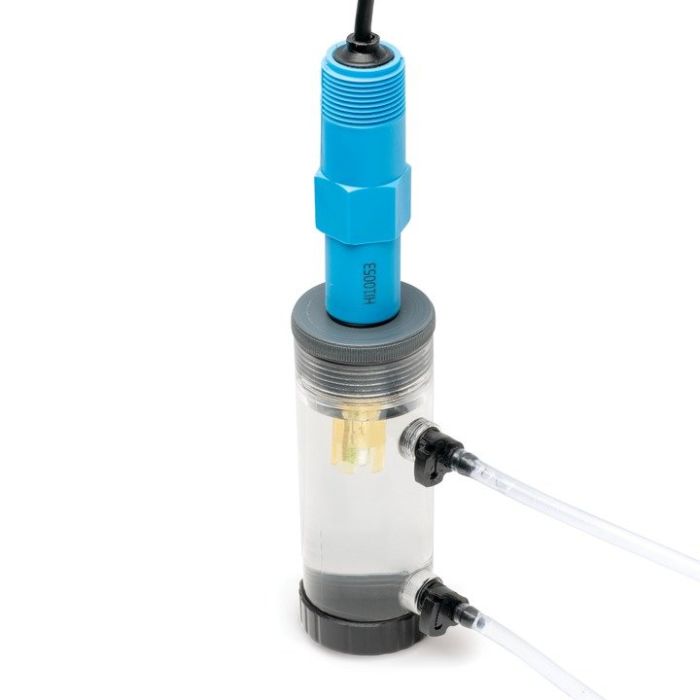

ORP electrode with flow cell

Three Configuration Options

The BL101 is available in multiple configurations including a meter only, meter and probe, and a complete package that includes bypass loop and panel mounted flow through cell. All models include aspiration tubing with filter and dispensing tubing with injection valve.

HI10053 ORP/Temperature Probe

The BL101 uses the HI20083 amplified probe that incorporates both ORP and temperature sensors and connects to the controller with a single waterproof Quick Connect DIN connector.

NPT Threads for In-line and Tank Mounting

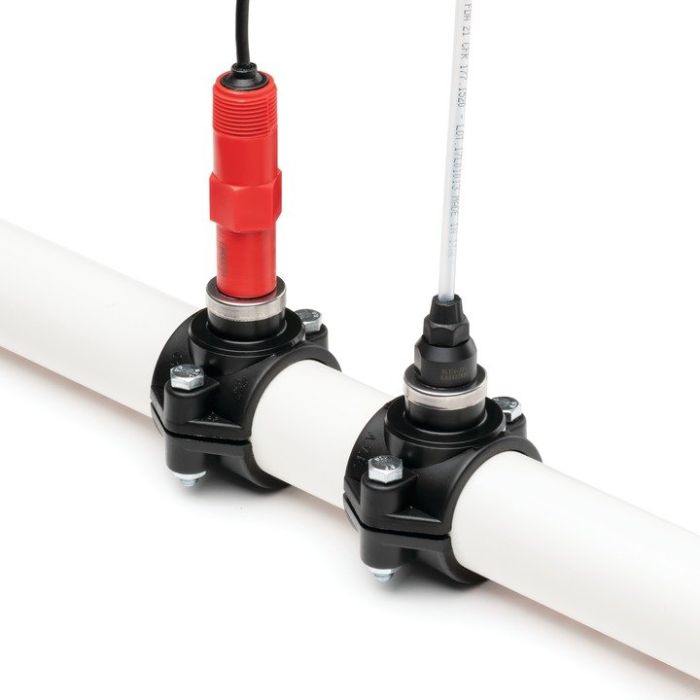

The ABS body of the probe has a 1/2” threaded fitting for insertion to an in-line “T” fitting or the flow cell. The back end part of the probe has 3/4” NPT threads for submersion/ tank mounting. The probe body has a hex fitting for tightening snuggly with a wrench. .

Specifications

SKU	BL101-web
Name	Pool Line ORP Controller and Dosing Pump - BL101
mV Range	-2000 to 2000 mV
mV Resolution	1 mV
mV Accuracy	±5 mV
mV (ORP) Calibration	process calibration: single point, adjustable (± 50 mV around measured ORP value)
mV (ORP) Dosing Relay	High or Low Mode Operation High set point dosing is activated when reading is higher than set point Low set point dosing is activated when reading is lower than set point (dose oxidizer)
mV (ORP) Dosing Set Point	On/Off control using adjustable set point (200 to 900 mV)
mV (ORP) Proportional Band	adjustable proportional band (10 to 200 mV)
mV (ORP) Hysteresis Band	adjustable hysteresis (10-100 mV)
Temperature Range	-5.0 to 105.0 °C (23.0 to 221.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy	±0.5 °C (±0.9 °F)
Dosing Control	proportional and on/off control
Alarm Relay Set Point	triggered after 5 sec. if the controller records a set of consecutive readings over or under threshold values
Over Dosing Control	overtime protection (1 to 180 m in. or Off)
Digital Input Signal	external switches can be connected to hold the control due to external events (low reagent level, recirculation pump doesn't work)
Power Consumption	15 VA
Enclosure	wall mounted with built-in pump
Maximum Flow Rate	selectable flow rate (0.5 to 3.5 L / hour; 0.13 to 0.96 g/hour) manual control for pump priming
ORP Electrode	HI20083 ORP/temperature probe with quick connect DIN connector (supplied)
Power Supply	100 - 240 Vac, 50/60 Hz
Environment	0 to 50 °C (32 to 122 °F), max. 95% RH non-condensing
IP Rating	IP65
Dimensions	90 x 142 x 80 mm (3.5 x 5.6 x 1.8 in.)
Weight	910 g (32 oz)

Ordering Info

BL101-00 is supplied with BL101 controller, HI20083 ORP/temperature probe, ORP test solution (3 pcs.), power connection cable, instruction manual and quality certificates for the instrument and electrode.
BL101-10 is supplied with BL101 controller, HI20083 ORP/temperature probe, 50 mm saddle for probe and chemical injector (2), aspiration filter (1), 1/2” threaded injection valve (1), flexible aspiration PVC tubing (5 m), rigid dispensing PE tubing (5), ORP test solution (3 pcs.), power connection cable, instruction manual and quality certificates for the instrument and electrode. BL101-20 is supplied with BL101 controller, HI20083 ORP/temperature probe, panel mounted flow cell assembly, 50 mm saddle for probe and chemical injector (2), aspiration filter (1), 1/2” threaded injection valve (1), flexible aspiration PVC tubing (5 m), rigid dispensing PE tubing (15 m), tubing adapter 1/2” - 6 mm with racord (2), ORP test solution (3 pcs.), power connection cable, instruction manual and quality certificates for the instrument and electrode.
