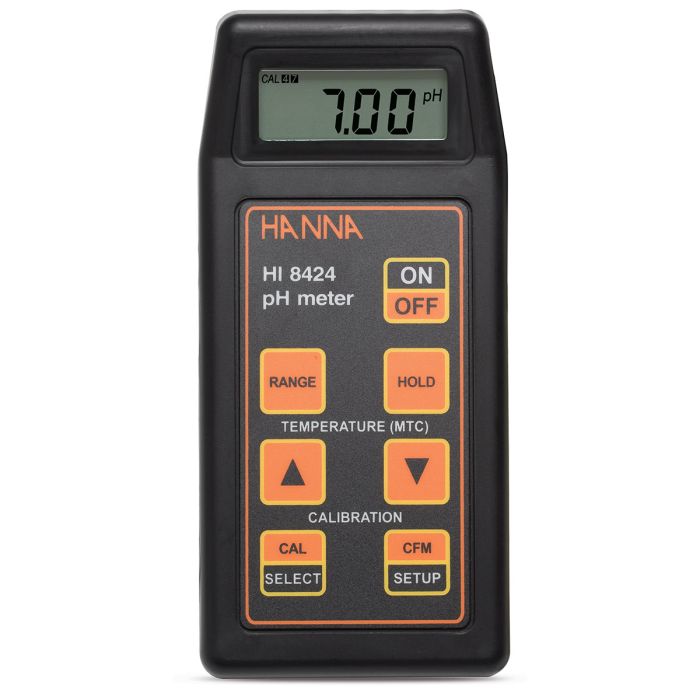

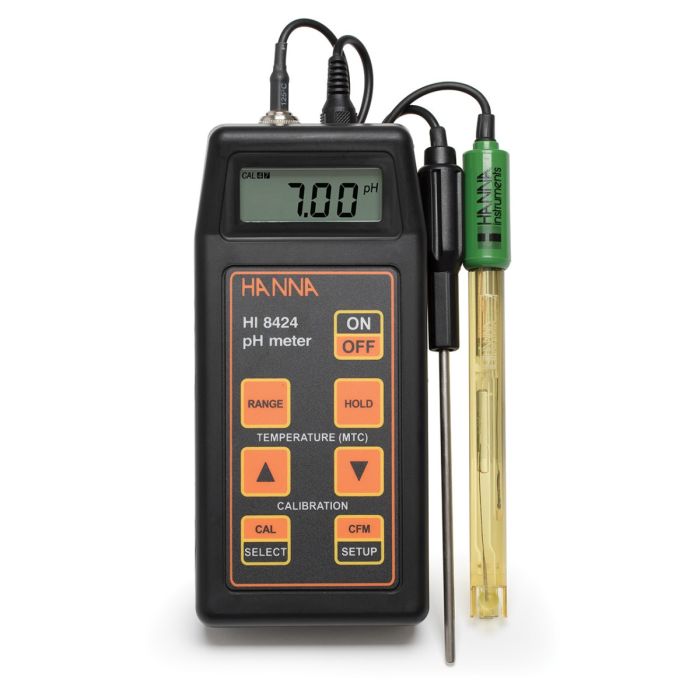

Portable pH/mV Meter - HI8424

HI8424

The HI8424 General Purpose pH/mV Meter is a highly accurate compact, waterproof, portable meter with a separate temperature probe for temperature compensated pH measurement.This meter has a BNC connection and can be used with many BNC style pH and ORP electrodes.

Compact waterproof design
Automatic Temperature Compensation (ATC)
Automatic one or two-point calibration

Features

Waterproof, heavy duty casing protects against water that would damage the electronics

Automatic calibration to one or two points to standard buffer values (pH 4.01, 7.01, and 10.01)

Automatic shutoff after 20 minutes to conserve battery life.

Low battery indicator is displayed when the battery life is at 5%

High resolution/accuracy mV range, switching resolution automatically from 1 mV to 0.1 mV when ORP readings are between -699.9 to +699.9 mV. The accuracy within this range is ±0.2 mV.

Comes complete with a protective carrying case, PEI plastic body pH electrode, stainless steel temperature probe, calibration buffer sachets, and cleaning solution sachets

Specifications

SKU	HI8424
Name	Portable pH/mV Meter - HI8424
pH Range	-2.00 to 16.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.01 pH
pH Calibration	automatic, at one or two points with three standard buffers (4.01, 7.01,10.01)
pH Input impedence	10¹² Ohms
mV Range	±699.9 mV; ±1999 mV
mV Resolution	0.1 mV; 1 mV
mV Accuracy	±0.2 mV; ±1 mV
Temperature Range	-20.0 to 120.0°C / -4.0 to 248.0°F
Temperature Resolution	0.1°C / 0.1°F
Temperature Accuracy	±0.4°C; ±0.8°F
Temperature Compensation	automatic from -20.0 to 120.0ºC (-4.0 to 248.0ºF) or manual without temperature probe connected
pH Electrode	HI1230B PEI body pH probe with BNC connector and 1 m (3.3’) cable (included)
Temperature Probe	HI7662 stainless steel temperature probe with 1 m (3.3’) cable (included)
Automatic Shut-Off	after 20 minutes of non-use (can be disabled)
Battery Type/Life	9V / approximately 150 hours of continuous use
Environment	0 to 50°C (32 to 122°F); RH max 100%
Dimensions	164 x 76 x 45 mm (6.5 x 3.0 x 1.8 in.)
Weight	180 g (6.3oz.)

Ordering Info

HI8424 is supplied with HI1230B pH electrode, HI7662 temperature probe, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), battery, protective case and instructions.
