Professional Portable Meat pH Meter - HI98163

Name: Professional Portable Meat pH Meter - HI98163
Brand: Hanna Instruments
SKU: HI98163
Price: 100325.25 INR
Availability: InStock

HI98163

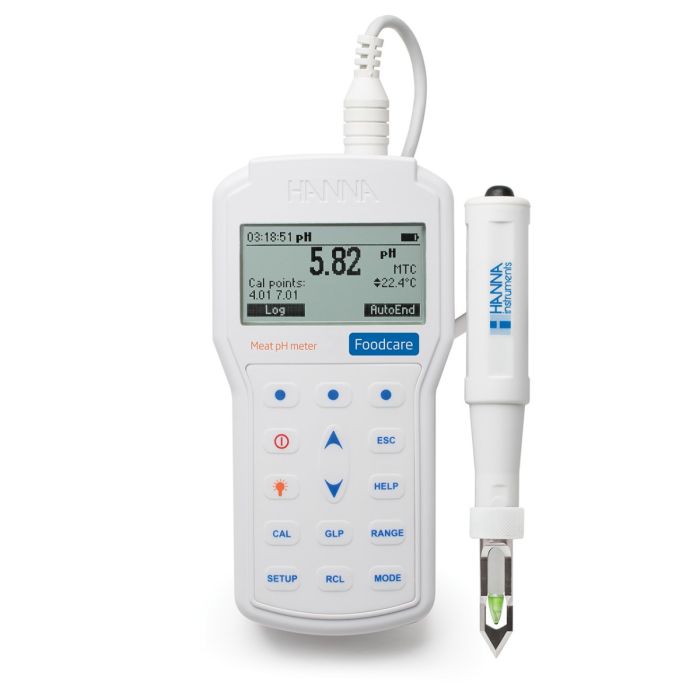

The HI98163 is a rugged, waterproof, Foodcare portable pH meter that measures pH and temperature using the specialized FC2323 meat pH electrode with a stainless steel piercing blade. This professional, waterproof meter complies with IP67 standards. The HI98163 is supplied with all necessary accessories to perform a pH/temperature measurement packaged into a durable thermoformed carrying case that holds the meters, probes and calibration buffers securely in place.

Quick Connect DIn Connector
USB Connection for Data Transfer
Dedicated Help Button

Download Catalogue

In the meat processing industry, the monitoring of pH is considered to be of the utmost importance due to its effect on the meat's quality factors including water binding capacity and shelf life. Upon slaughter, biochemical processes begin to break down the meat. Glycolysis begins post-mortem, converting glycogen to lactic acid, reducing the pH of the carcass. Depending on a number of factors such as type of animal and even breed, this decrease in pH can take anywhere from a single hour to many. It is vital to monitor pH during this phase as once the lowest pH value is reached, the pH will begin to slowly rise, indicating that decomposition has begun.

The pH value of meat influences its' water binding capacity which directly impacts consumer qualities such as tenderness and color. Lower pH values result in a lower water-binding capacity and lighter colors. Factors such as these can be important when considering how to efficiently produce meat products. For example, when producing dry sausages the meat must have a low water binding capacity so that it can dry evenly.

Depending on the type of the final product and the steps required to get there, pH values will vary throughout the meat processing industry. It is imperative, regardless of the final product, that pH be maintained at a low value to prevent bacterial spoilage and comply with food safety regulations. By monitoring pH values throughout the meat production process, you can ensure the creation of consistent and safe meat products.

Meat products can provide a number of challenges for the person that needs to measure pH. Oils and solids from the meat can coat the sensitive glass membrane surface and/or clog the reference junction. The FC2323 that is supplied with the HI98163 is designed specifically for measuring pH in meat. Design considerations include a stainless steel piercing blade around conic tip shape probe for easy penetration, an open junction that resist clogging, and a Polyvinylidene Fluoride (PVDF) food grade plastic body that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth. The FC2323 is an ideal general-purpose pH electrode for meat that connects to the HI98163 with a quick-connect, waterproof DIN connector, allowing for a secure, non-threaded attachment.

The FC2323 is an amplified pH electrode with a built-in temperature sensor. This probe is designed with low temperature (LT) glass, a conical tip shape, and is housed in a food grade PVDF body with a removable, piercing stainless steel blade. This electrode also features a unique open junction design in which there a viscolene (hard gel) electrolyte layer that is free of silver chloride (AgCl) between the sample to be measured and the internal reference cell. The open junction design resists clogging and the probe's conical tip makes it ideal for pH measurements in meat and semi-solid food samples.

Conical Glass Tip

The conical shaped tip design allows for penetration into solids, semi-solids, and emulsions for the direct measurement of pH in food products including meat, cheese, yogurt, and milk.

Open Junction Reference

The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable reading.

PVDF Body

Polyvinylidene fluoride (PVDF) is a food grade plastic that is resistant to most chemicals and solvents, including sodium hypochlorite. It has high abrasion resistance, mechanical strength and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.

Besides being supplied with a unique pH electrode for meat, the HI98163 has the Hanna's unique CAL Check™ feature that alerts the user to potential problems during the calibration process. This is a very important for the food processor since it is likely that the probe will be coated with the solids found in the food product being measured. This coating can easily lead to errors in pH measurement. By comparing previous calibration data to the current calibration, the meter will inform the user, with display prompts, when the probe needs to be cleaned, replaced, or if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed on screen as a percentage from 0 to 100% in increments of 10%. The probe condition is affected by both the offset and slope characteristics of the pH electrode, both of which can be found in the GLP data.

Pressing the "AutoHold" virtual key in measurement mode, the meter will freeze and automatically log a stable reading. An "out of calibration range" warning can be enabled that will alert the user when a reading is not within the bracket of calibrated pH values.

The log-on-demand mode allows the user to record and save up to 200 samples. The logged data, along with the associated GLP data, can then be recalled or transferred to a PC with Hanna's HI920015 micro USB cable and HI92000 software for traceability in record keeping for specific product batches. GLP data includes date, time, calibration buffers, offset, and slope, and is directly accessible by pressing the dedicated GLP key.

A contextual help menu based on the screen that is currently being viewed can be accessed at any time by the press of a dedicated button.

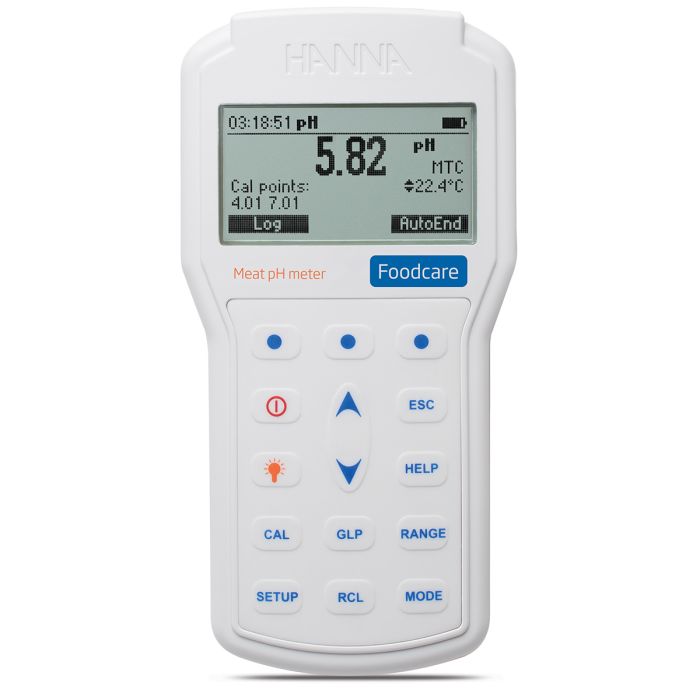

The high contrast, graphic LCD screen is easy to view outdoors in bright sunlight as well as in low-lit areas with the backlight. A combination of dedicated and virtual keys allows for easy, intuitive meter operation in a choice of languages.

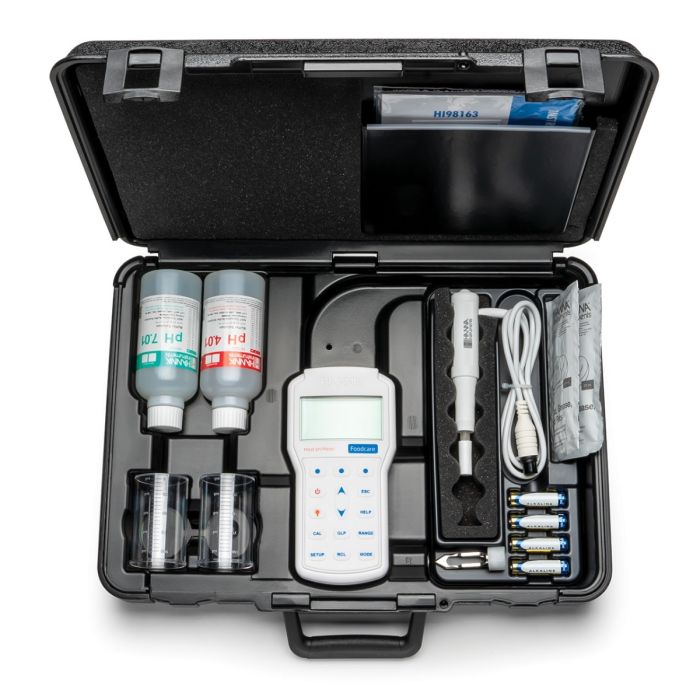

The compact, durable HI720161 carrying case is thermoformed to hold all necessary components for taking a field measurement, including the meter and electrode, beakers, buffer solutions and cleaning solutions.

On-Screen Features

Setup screen

Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.

Calibration

pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.

GLP

Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.

Features/Benefits:

Ergonomic, rugged, waterproof (IP67) design

Supplied with FC2323 Foodcare pH/Temperature electrode

Body made of food grade PVDF plastic
Piercing stainless steel blade for easy penetration into meats
Open junction design that resist clogging from food solids
Low temperature pH sensing glass suitable for refrigerated products
Built in temperature sensor for temperature compensated measurements

Five-point pH calibration with seven standard buffers and five custom buffers

CAL Check

Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics

Log-on-demand

Store measurement data at the press of a button

AutoHold

Freezes displayed measurement reading upon stabilization

GLP Features

GLP data including date, time, pH calibration buffers, offset, and slope
GLP data stored with logged data for traceability

Calibration timeout to alert the user at a defined interval when the calibration has expired

Multiple language selection

200 hour battery life with battery level displayed on measurement screen

Menu driven for ease of use with virtual-key extended functionality

Contextual help at the press of a button

Backlit, graphic LCD

Connectivity

PC connectivity via a sealed opto-isolated micro USB and HI92000 software

Specifications

SKU	HI98163
Name	Professional Portable Meat pH Meter - HI98163
pH Range	-2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH
pH Resolution	0.1 pH; 0.01 pH; 0.001 pH
pH Accuracy	±0.1; ±0.002 pH
pH Calibration	up to five point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) + five custom buffers
pH Temperature Compensation	manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F)
pH Input impedence	10¹² Ohms
mV Range	±2000 mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
Temperature Range	-20.0 to 120.0°C (-4.0 to 248.0°F)
Temperature Resolution	0.1°C (0.1°F)
Temperature Accuracy	±0.4°C (±0.8°F) (excluding probe error)
Temperature Compensation	manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F)
pH Electrode	FC2323 Foodcare PVDF body, pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3’ cable)
Logging Memory	200 samples (100 pH and 100 mV range)
Connectivity	opto-isolated USB with optional HI 92000 software and micro USB cable
Automatic Shut-Off	user selectable: 5, 10, 30, 60 min or can be disabled
GLP	Yes
Battery Type/Life	1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight)
IP Protection	IP67
Environment	0 to 50°C (32 to 122°F); RH 100%
Dimensions	185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight	400 g (14.2 oz.)

Ordering Info

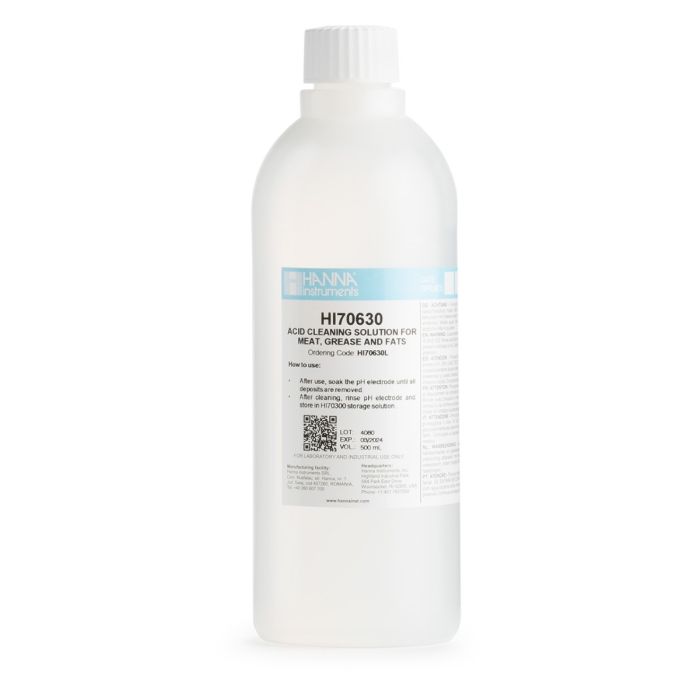

HI98163 is supplied with FC2323 PVDF body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700630 electrode acid cleaning solution for meat grease and fat deposits sachet (2), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual with quick start guide, instrument quality certificate and HI720161 hard carrying case
