PVDF Body
The FC1013 pH electrode has a food-grade PVDF body that is durable and chemically resistant.
Spheric Glass Tip
A large surface area provides optimal contact between the sensing bulb and aqueous milk sample.
Built-In Temperature Sensor
A thermistor temperature sensor in the tip of the indicating pH bulb, providing the most accurate, temperature-compensated measurements
On-Screen Features
Setup screen
Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.
Calibration
pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.
GLP
Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.
Features
Contextual help at the press of a button
High contrast, graphic LCD screen is easy viewing in bright sunlight and low-lit areas
Five-point pH calibration with seven standard buffers and five custom buffers
Displays overall condition of the pH electrode after calibration based on the offset and slope characteristics
Calibration timeout to alert the user at a defined interval when the calibration has expired
AutoHold freezes displayed measurement reading when stable
GLP data including date, time, pH calibration buffers, offset, and slope
200 hour battery life with battery level displayed on measurement screen
PC connectivity via a sealed opto-isolated micro USB and HI92000 software
Ergonomic, rugged, waterproof (IP67) design
Supplied with FC1013 Foodcare pH/Temperature electrode
- Body made of food grade PVDF plastic
- Refillable with silver free electrolyte
- Open junction design that resist clogging from food solids
- General purpose pH sensing glass suitable for a wide range of temperatures
- Built in temperature sensor for temperature compensated measurements
Five-point pH calibration with seven standard buffers and five custom buffers
CAL Check
- Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination
- Displays overall condition of the pH electrode after calibration that is based on the offset and slope characteristics
Log-on-demand
- Store measurement data at the press of a button
AutoHold
- Freezes displayed measurement reading upon stabilization
GLP Features
- GLP data including date, time, pH calibration buffers, offset, and slope
- GLP data stored with logged data for traceability
Calibration timeout to alert the user at a defined interval when the calibration has expired
Multiple language selection
200 hour battery life with battery level displayed on measurement screen
Menu driven for ease of use with virtual-key extended functionality
Contextual help at the press of a button

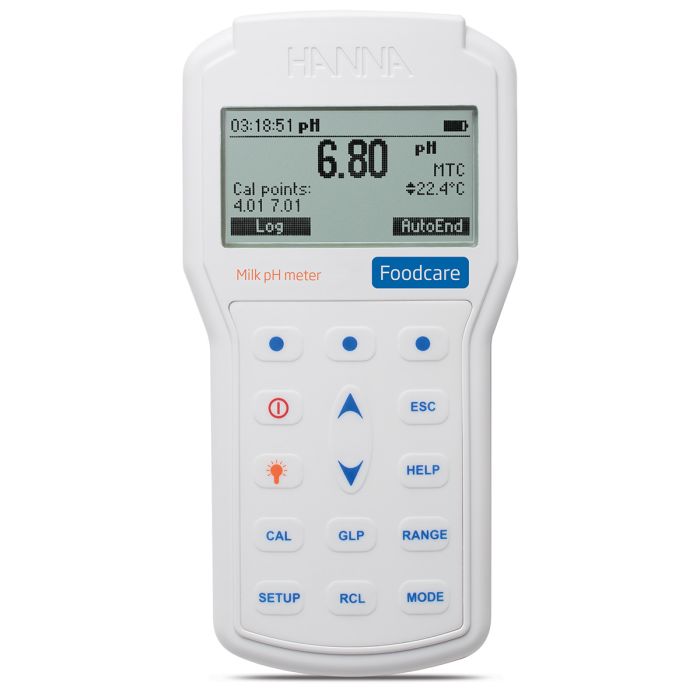

Backlit, graphic LCD
Connectivity
- PC connectivity via a sealed opto-isolated micro USB and HI92000 software

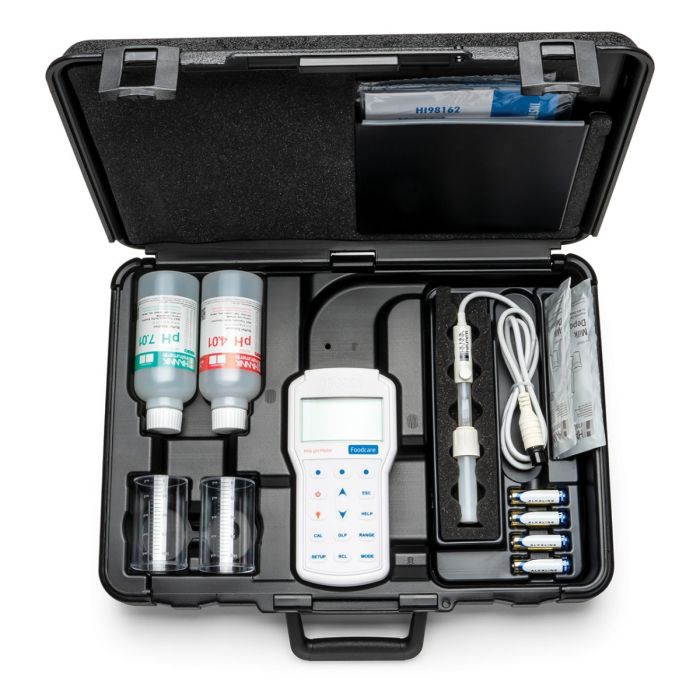

HI98162 is supplied with FC1013 PVDF body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700640 electrode cleaning solution for milk deposits sachet (2), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual with quick start guide, instrument quality certificate and HI720161 hard carrying case.
