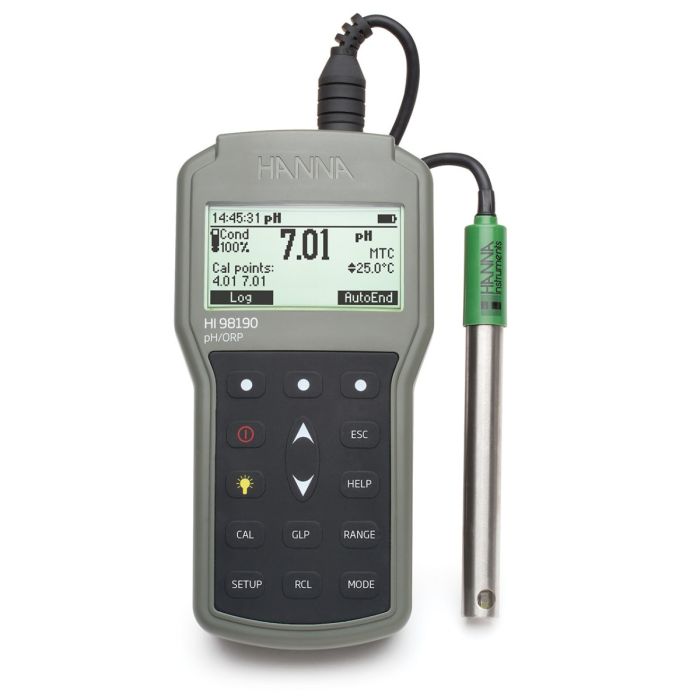

Professional Waterproof Portable pH/ORP Meter - HI98190

Name: Professional Waterproof Portable pH/ORP Meter - HI98190
Brand: Hanna Instruments
SKU: HI98190
Price: 82815.75 INR
Availability: InStock

HI98190

Bring the performance of a benchtop pH meter with you when you use the HI98190 handheld pH meter. This professional, waterproof meter accurately measures pH, ORP and temperature. Built-in diagnostic features for the most precise measurements and logging so you never miss a measurement, the HI98190 is the perfect tool for environmental and industrial testing.

CAL Check™ electrode diagnostics system alerts you to potential calibration problems so that you know your results are trustworthy every time.
Everything you need for field testing in one compact, durable carrying case.
Great for environmental and industrial testing.

For ORP measurements, use either the HI36183 or HI36203 electrodes.

Download Catalogue

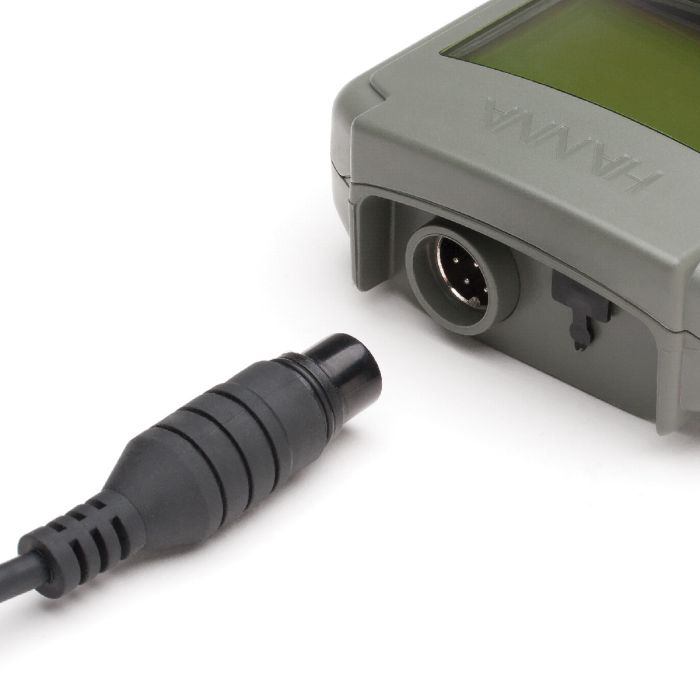

For the measurement of pH, the HI98190 handheld pH meter comes with an HI12963 titanium body amplified pH electrode with a built-in temperature sensor for automatic temperature compensated readings. The titanium probe body is chemically resistant to aggressive chemicals and is virtually unbreakable. The HI12963 pH/temperature electrode features a newly designed Quick Connect DIN connector that provides a simple waterproof connection without any threads.

Hanna's unique CAL Check™ feature alerts the user to potential problems during the calibration process. By comparing previous calibration data to the current calibration, the meter will alert the user with display prompts when the probe needs to be cleaned or is broken, and if the pH buffer might be contaminated. After calibration, the overall probe condition is displayed as a percentage from 0 to 100% in increments of 10%. The probe condition is affected by both the offset and slope characteristics of the pH electrode and is displayed on the measurement screen on the day of calibration and in the GLP data. Calibration can be performed up to five points with seven preprogrammed standard pH buffers and five custom ones to achieve a pH accuracy of ±0.002 with ±0.001 pH resolution.

Pressing the "AutoHoldin. virtual key seen in measurement mode, the portable ph meter will freeze a stable reading, allowing for the reading to be documented or logged. An "out of calibration rangein. warning can be enabled that will alert the user when a reading is not within the bracket of calibrated pH values.

The log-on-demand mode allows the user to record and save up to 200 samples (100 for pH and 100 for mV). This data, along with the associated GLP data, can then be transferred to a PC with Hanna's HI920015 micro USB cable and HI92000 software.

The high contrast graphic LCD is easy to read outdoors in bright sunlight as well as in low-lit areas with the use of the backlight. A combination of dedicated and virtual keys allows easy, intuitive operation in a choice of languages.

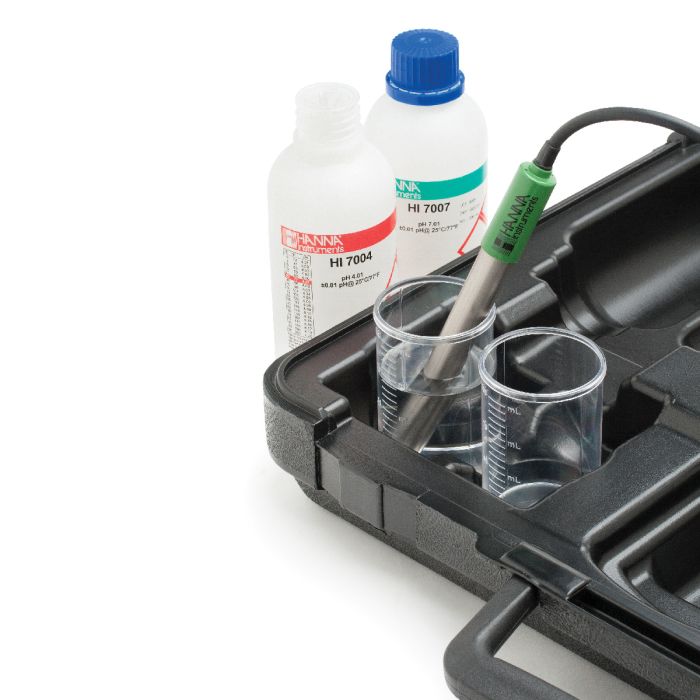

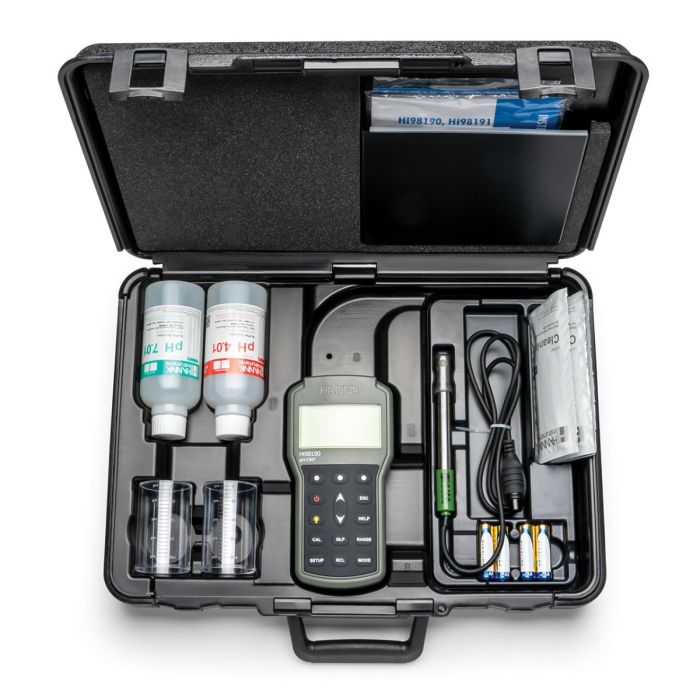

The compact, durable carrying case is thermoformed to hold all necessary components for taking a field measurement, including the meter and electrode, beakers, buffer solutions, cleaning solutions, and storage solutions.

On-Screen Features

Setup screen

Our extensive setup screen features a host of configurable options such as time, date, temperature units and language for help screens and guides.

Calibration

pH calibration features detailed CAL Check™ messages. Users are guided through the calibration procedure with step-by-step on-screen instructions.

GLP

Comprehensive GLP functions are directly accessible by pressing the GLP key. Calibration data, including: date, time, offset, slope and buffers used in the last calibration can be reviewed.

Features/Benefits:

Ergonomic, rugged, waterproof (IP67) design

pH CAL Check™

Alerts user to potential problems during calibration including when to clean electrode and possible buffer contamination.
Displays overall probe condition based on offset and slope after calibration

Automatic Temperature Compensation

Five-point pH calibration with seven standard buffers and five custom buffers

Log-on-demand

Store measurement data at the press of a button

AutoHold - freezes reading on display upon stabilization

GLP features

GLP data including date, time, pH calibration buffers, offset and slope

Calibration timeout to alert the user at a defined interval when the calibration has expired

Multiple language selection

200 hour battery life with battery level displayed on measurement screen

Menu driven for ease of use with virtual-key extended functionality

Contextual help at the press of a button

Backlit, graphic LCD

Connectivity

PC connectivity via a sealed opto-isolated micro USB and HI92000 software

PRIMARY APPLICATIONS: Food & Beverage, Plating, Water and Wastewater, Chemical Manufacturing, Agriculture, and Environmental

Video

Specifications

Specification	Detail
sku	HI98190
pH Range	-2.0 to 20.0 pH / -2.00 to 20.00 pH / -2.000 to 20.000 pH
pH Resolution	0.1 pH / 0.01 pH / 0.001 pH
pH Accuracy @ 25°C / 77°F	±0.1 pH / ±0.01 pH / ±0.002 pH
pH Calibration	Up to five point calibration, seven standard buffers available (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45), and five custom buffers
mV Range	±2000.0 mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
Temperature Range	-20.0 to 120.0 °C (-4.0 to 248.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy @ 25°C / 77°F	±0.4 °C (±0.8 °F) (excluding probe error)
Temperature Compensation	manual or automatic from -20.0 to 120.0°C (-4.0 to 248.0°F)
Log Feature	On demand, 200 samples (100 pH and 100 mV)
Connectivity	PC Connectivity - opto-isolated USB with optional HI 92000 software and micro USB cable
GLP	Yes
Power Supply	1.5V AA batteries (4 pcs.)
Power Consumption	approx. 200 hours of continuous use without backlight (50 hours with backlight)
Environment	7 to 50 °C (32 to 122 °F) max. RH 100% IP67
Dimensions	192 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.)
Weight	407 g (14.2 oz)
Ordering Information	HI98190 is supplied with HI12963 titanium body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700601 electrode cleaning solution sachet (2 x 20 mL), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual, quick start guide, instrument quality certificate, and HI720190 hard carrying case.
Warranty	2 years
Recommended Probe	HI12963 Titanium body, pH electrode with internal temperature sensor, quick DIN connector and 1 m (3.3' cable)

Ordering Info

HI98190 is supplied with HI12963 titanium body pH electrode, HI7004M pH 4.01 buffer solution (230 mL), HI7007M pH 7.01 buffer solution (230 mL), HI700601 electrode cleaning solution sachet (2 x 20 mL), 100 mL plastic beaker (2), 1.5V AA batteries (4), HI92000 PC software, HI920015 micro USB cable, instruction manual, quick start guide, instrument quality certificate, and HI720190 hard carrying case.
