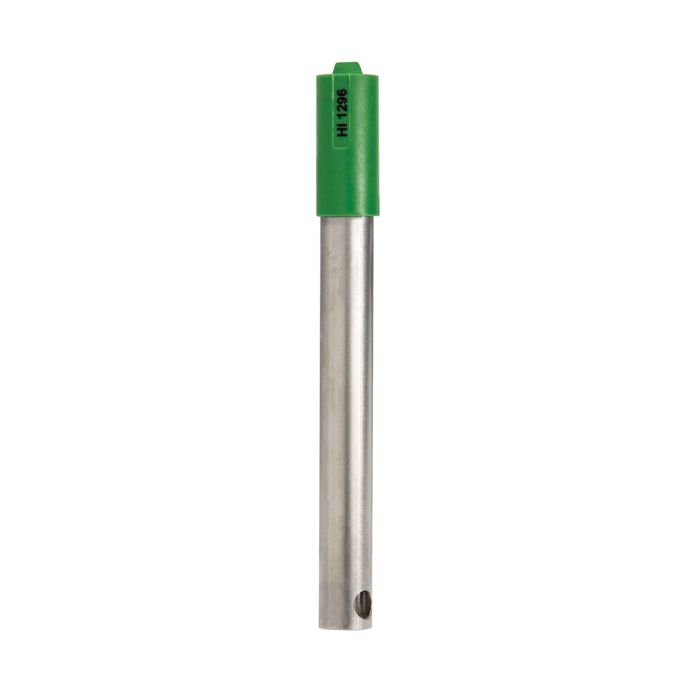

Titanium Body pH Electrode for Wastewater with DIN Connector - HI1296D

Name: Titanium Body pH Electrode for Wastewater with DIN Connector - HI1296D
Brand: Hanna Instruments
SKU: HI1296D
Price: 22748.00 INR
Availability: InStock

HI1296D| Ships within 24 hours (business days)

The HI1296D is a titanium body, gel filled, single reference junction pH electrode with a DIN connector. This sensing portion of this electrode is made with general purpose glass. The HI1296D also has an extendable cloth type junction, built-in temperature sensor and an amplifier within a single probe design.

This design consideration is ideal for measuring the pH in municipal and industrial wastewater and various field applications. The HI1296D is designed for use with Hanna’s HI991001 Portable pH Meter.

Titanium Body
Built-In Temperature Sensor
Extendable Cloth Junction

Rs. 22,748.00

GST and Shipping charges are extra

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

The HI1296D uses general purpose (GP) glass, spherical bulb, titanium body, and cloth junction with gel electrolyte.

General Purpose Glass Formulation

General Purpose (GP) glass, as the name implies, is a standard glass formulation that is used for general use. A pH electrode with GP glass will have a resistance of 100 megaohms at 25℃ and is suited for measuring pH of samples that are at ambient temperatures. The HI1296D is suitable to use with samples that measure from 0 to 80℃.

Spherical Bulb

The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.

Titanium Body

A titanium body increases immunity to electrostatic and magnetic fields. It also allows for strong corrosion resistance, even in seawater. Our titanium bodied electrodes' outer casings also serve as a matching pin. A matching pin is a differential measurement technique used to eliminate ground loops and common mode perturbations for the measurement system. In a system without a matching pin, electrical currents in the samples can affect the reference half cell voltage. The matching pin isolates these current/magnetic fields from the reference electrode for safe, precise pH measurements.

Cloth Junction

This type of junction is often used on electrodes with gelled electrolytes. The advantage of this junction is it is renewable; as the cloth-like material is pulled out from its position, the junction is renewed with an uncontaminated, fresh surface.

DIN Connector

The HI1296D uses a DIN connector. This type of connector is proprietary to the meter. Compatible meters include the HI991001.

Specifications

SKU	HI1296D
Name	Titanium Body pH Electrode for Wastewater with DIN Connector - HI1296D
Measurement Range	pH: 0 to 13
Reference Cell Type	single, Ag/AgCl
Junction Type/Flow Rate	cloth
Type of Electrolyte	gel
Body Material	titanium
Tip / Shape	spheric (dia: 5 mm)
Matching Pin	yes
Max. Pressure	3.0 bar
Temperature Operating Range	0 to 80°C (32 to 176°F) - GP
Body Length/Overall Length	105 mm / 145.5 mm
Temperature Sensor	yes
Outer Diameter	14 mm
Cable	7-pole; 1 m (3.3 in.)
Connector Type	DIN
Amplifier	yes
Recommended Use	environmental, industrial, plating, wastewater
